complexType "ContactInformation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 3 locations

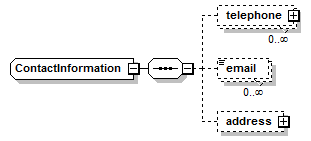

Content Model Diagram

XML Representation Summary

<...>

Content:

</...>

Content Model Elements (3):

All Direct / Indirect Based Elements (3):

Known Usage Locations

Annotation

A type that represents how to contact an individual or organization.

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="ContactInformation">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="telephone" type="TelephoneNumber"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="email" type="NormalizedString"/>

<xsd:element minOccurs="0" name="address" type="Address"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

Address, complex content

A postal or street address.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="address" type="Address"/>

Type:

An address on an electronic mail or messaging sysem .

Simple Content

xsd:normalizedString

minLength:

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="email" type="NormalizedString"/>

Type:

TelephoneNumber, complex content

A telephonic contact.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="telephone" type="TelephoneNumber"/>
