complexType "RelativeDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 10 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

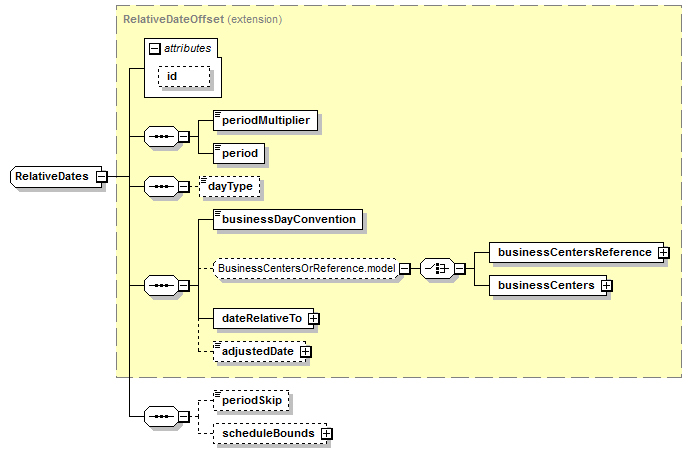

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (10):
adjustedDate (defined in RelativeDateOffset complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
businessDayConvention (defined in RelativeDateOffset complexType),
dateRelativeTo (defined in RelativeDateOffset complexType),
dayType (defined in Offset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType),
periodSkip,
scheduleBounds
All Direct / Indirect Based Elements (2):
relativeDates (defined in AdjustableOrRelativeDates complexType),
relativeDates (defined in AdjustableRelativeOrPeriodicDates2 complexType)
Known Usage Locations
Annotation
A type describing a set of dates defined as relative to another set of dates.
Type Definition Detail
Type Derivation Tree
Period (extension)
  Offset (extension)
      RelativeDateOffset (extension)
          RelativeDates
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="RelativeDates">
<xsd:complexContent>
<xsd:extension base="RelativeDateOffset">
<xsd:sequence>
<xsd:element minOccurs="0" name="periodSkip" type="xsd:positiveInteger"/>
<xsd:element minOccurs="0" name="scheduleBounds" type="DateRange"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/10)
periodSkip
Type:
xsd:positiveInteger, predefined, simple content
The number of periods in the referenced date schedule that are between each date in the relative date schedule. Thus a skip of 2 would mean that dates are relative to every second date in the referenced schedule. If present this should have a value greater than 1.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="periodSkip" type="xsd:positiveInteger"/>
scheduleBounds
Type:
DateRange, complex content
The first and last dates of a schedule. This can be used to restrict the range of values in a reference series of dates.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="scheduleBounds" type="DateRange"/>
