complexType "LoanContractNotificationRetracted"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 15 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

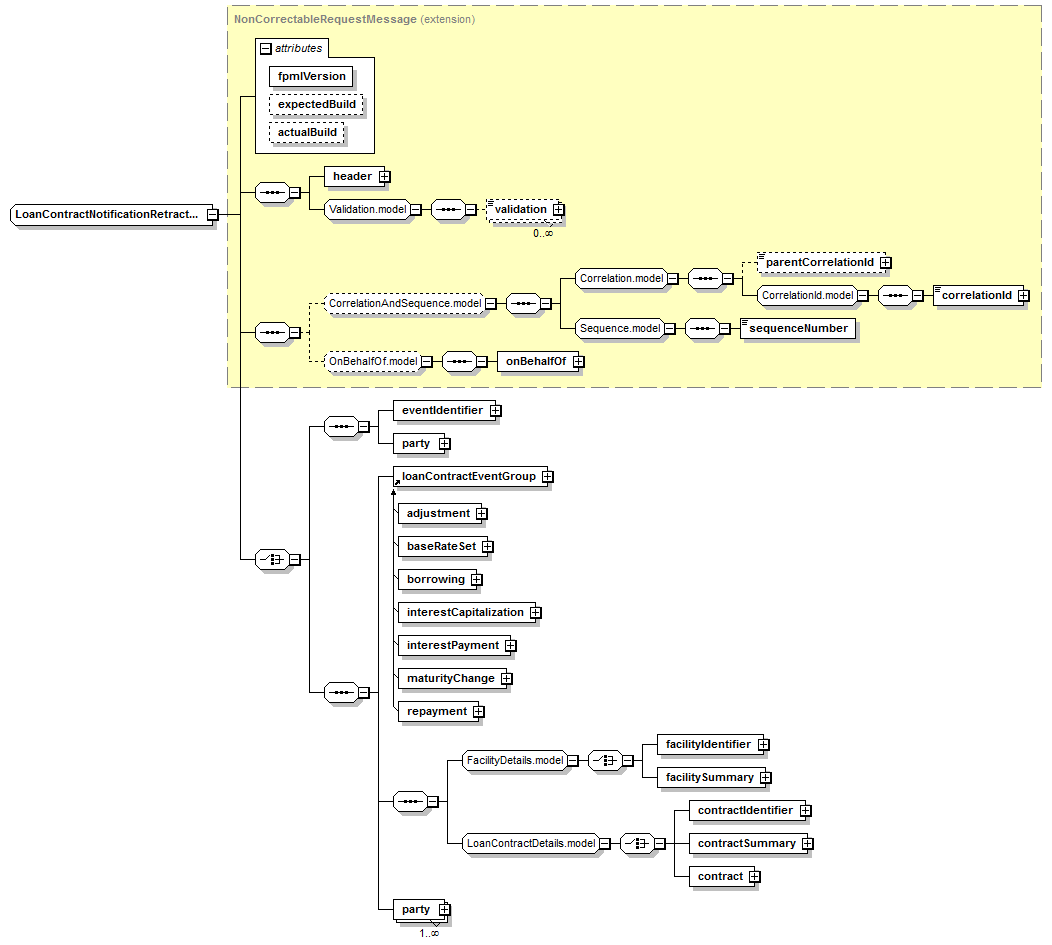

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, ((eventIdentifier, party) | (loanContractEventGroup, (facilityIdentifier | facilitySummary), (contractIdentifier | contractSummary | contract), party+))
</...>
Content Model Elements (15):
contract (defined in LoanContractDetails.model group),
contractIdentifier,
contractSummary,
correlationId,
eventIdentifier (in loanContractNotificationRetracted),
facilityIdentifier (defined in FacilityDetails.model group),
facilitySummary,
header (defined in RequestMessage complexType),
loanContractEventGroup,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (in loanContractNotificationRetracted),
party (in loanContractNotificationRetracted),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
loanContractNotificationRetracted
Known Usage Locations
Annotation
A loan servicing notification retraction used to communicate cancellation of various loan contract business events.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              LoanContractNotificationRetracted
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="LoanContractNotificationRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:choice>
<xsd:sequence>
<xsd:element name="eventIdentifier" type="BusinessEventIdentifier"/>
<xsd:element name="party" type="Party"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element ref="loanContractEventGroup"/>
<xsd:sequence>
<xsd:group ref="FacilityDetails.model"/>
<xsd:group ref="LoanContractDetails.model"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="party" type="Party"/>
</xsd:sequence>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/15)
eventIdentifier
Type:
BusinessEventIdentifier, complex content
A collection of referenced business events being cancelled/retracted.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="eventIdentifier" type="BusinessEventIdentifier"/>
loanContractEventGroup
Type:
LoanContractEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 7 elements
XML Source (see within schema source)
<xsd:element ref="loanContractEventGroup"/>
party
Type:
Party, complex content
A legal entity or a subdivision of a legal entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="party" type="Party"/>
party
Type:
Party, complex content
A legal entity or a subdivision of a legal entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="party" type="Party"/>
