complexType "ExecutionAdvice"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 22 elements
Defined:	globally in fpml-confirmation-processes-5-2.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

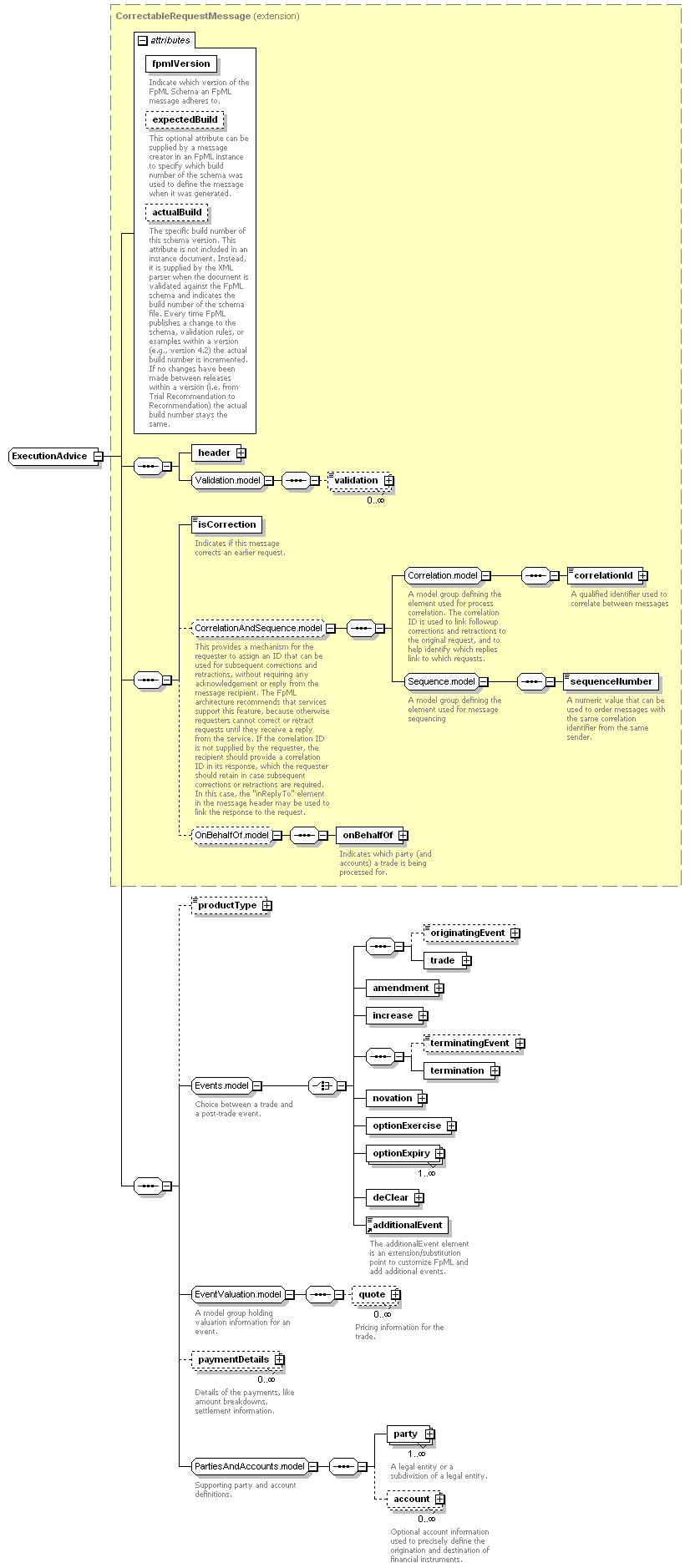

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (22):

header (defined in RequestMessage complexType),

increase,

isCorrection (defined in CorrectableRequestMessage complexType),

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

party,

paymentDetails (in executionAdvice),

productType (in executionAdvice),

quote (defined in EventValuation.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in Events.model group),

termination,

trade (defined in Events.model group),

validation

All Direct / Indirect Based Elements (1):

executionAdvice

Known Usage Locations

As direct type of elements (1):
executionAdvice

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

ExecutionAdvice

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="ExecutionAdvice">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:element minOccurs="0" name="productType" type="ProductType"/>

<xsd:group ref="Events.model"/>

<xsd:group ref="EventValuation.model"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/22)

paymentDetails

Type:

PaymentDetails, complex content

Details of the payments, like amount breakdowns, settlement information.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>

productType

Type:

ProductType, simple content

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (see within schema source)

<xsd:element minOccurs="0" name="productType" type="ProductType"/>
