complexType "Message" | XML Schema Documentation

complexType "Message"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	empty, 3 attributes
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-msg-5-3.xsd; see XML source
Used:	at 4 locations

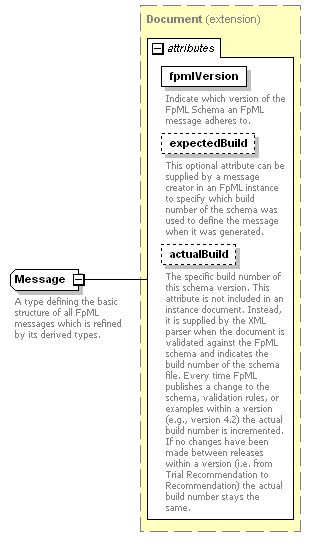

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"2"

/>

Known Direct Subtypes (4):

Exception, NotificationMessage, RequestMessage, ResponseMessage

Known Indirect Subtypes (45):

Acknowledgement, CancelTradeCashflows, CollateralProposalStatus, CorrectableRequestMessage, CreditEventNotification, DisputeNotification, DisputeRetracted, EventActivityReport, EventStatusResponse, ExposureReport, InterestStatement, InterestStatus, InterestStatusRetracted, MarginCallStatus, MarginCallStatusRetracted, NettedTradeCashflowsAsserted, NettedTradeCashflowsMatchResult, NettedTradeCashflowsRetracted, NonCorrectableRequestMessage, PartyReport, PositionActivityReport, PositionReport, PositionsAcknowledged, PositionsAsserted, PositionsMatchResults, RequestCollateralAcceptance, RequestEventStatus, RequestInterest, RequestInterestRetracted, RequestMargin, RequestMarginRetracted, RequestPortfolio, RequestPositionReport, RequestRetransmission, RequestSubstitution, RequestSubstitutionRetracted, RequestValuationReport, ResetReport, SubstituteReturnConfirmationStatus, SubstitutionStatus, SubstitutionStatusRetracted, TerminatingEventsReport, TradeCashflowsAsserted, TradeCashflowsMatchResult, ValuationReport

All Direct / Indirect Based Elements (69):

cancelTradeCashflows, collateralAcceptanceAcknowledgement, collateralAcceptanceException, collateralProposalStatus, creditEventNotification, disputeAcknowledgement, disputeException, disputeNotification, disputeRetracted, eventActivityReport, eventActivityReportAcknowledgement, eventActivityReportException, eventStatusException, eventStatusResponse, exposureReport, exposureReportAcknowledgement, exposureReportException, interestStatement, interestStatus, interestStatusRetracted, marginAcknowledgement, marginCallStatus, marginCallStatusRetracted, marginException, messageRejected, nettedTradeCashflowsAcknowledgement, nettedTradeCashflowsAsserted, nettedTradeCashflowsException, nettedTradeCashflowsMatchResult, nettedTradeCashflowsRetracted, partyReport, partyReportAcknowledgement, partyReportException, positionActivityReport, positionActivityReportAcknowledgement, positionActivityReportException, positionReport, positionReportAcknowledgement, positionReportException, positionsAcknowledged, positionsAsserted, positionsMatchResults, requestCollateralAcceptance, requestEventStatus, requestInterest, requestInterestRetracted, requestMargin, requestMarginRetracted, requestPortfolio, requestPositionReport, requestRetransmission, requestSubstitution, requestSubstitutionRetracted, requestValuationReport, resetReport, resetReportAcknowledgement, resetReportException, returnConfirmationStatus, substituteConfirmationStatus, substitutionStatus, substitutionStatusRetracted, terminatingEventsReport, terminatingEventsReportAcknowledgement, terminatingEventsReportException, tradeCashflowsAsserted, tradeCashflowsMatchResult, valuationReport, valuationReportAcknowledgement, valuationReportException

Known Usage Locations

In derivations of other global types (4):

Exception (as extension base),
NotificationMessage (as extension base),
RequestMessage (as extension base),
ResponseMessage (as extension base)

Annotation

A type defining the basic structure of all FpML messages which is refined by its derived types.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="Message">

<xsd:complexContent>

<xsd:extension base="Document"/>

</xsd:complexContent>

</xsd:complexType>
