complexType "NonpublicExecutionReport"

Namespace:	http://www.fpml.org/FpML-5/reporting
Content:	complex, 3 attributes, 26 elements
Defined:	globally in fpml-recordkeeping-processes-5-10.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

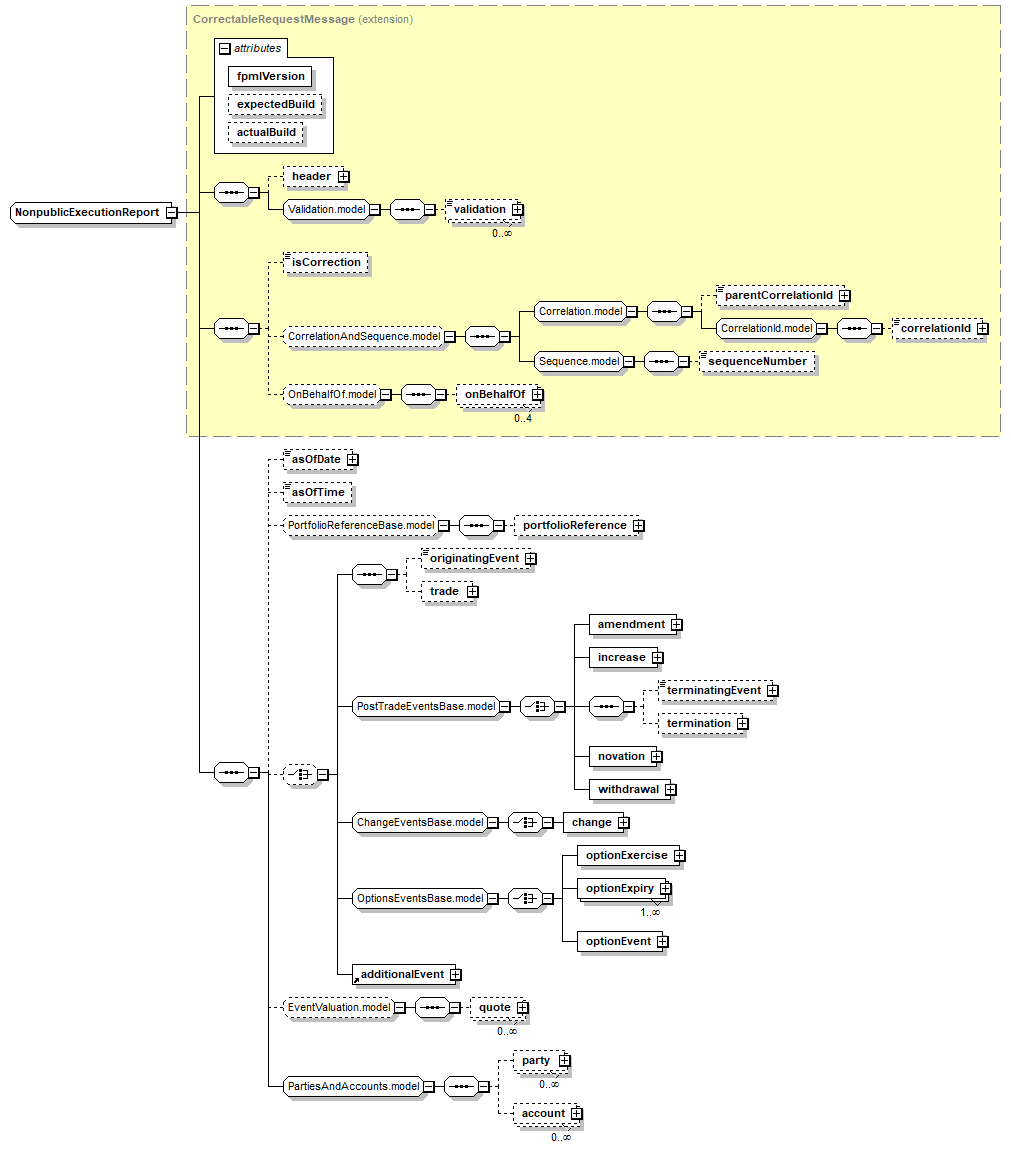

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"5"

Content:

</...>

Content Model Elements (26):

account,

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

asOfDate (in nonpublicExecutionReport),

asOfTime (in nonpublicExecutionReport),

change (defined in ChangeEventsBase.model group),

correlationId,

header (defined in RequestMessage complexType),

increase (defined in PostTradeEventsBase.model group),

isCorrection,

novation (defined in PostTradeEventsBase.model group),

onBehalfOf (defined in OnBehalfOf.model group),

optionEvent,

optionExercise (defined in OptionsEventsBase.model group),

optionExpiry (defined in OptionsEventsBase.model group),

originatingEvent (in nonpublicExecutionReport),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

portfolioReference (in nonpublicExecutionReport),

quote (in nonpublicExecutionReport),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (in nonpublicExecutionReport),

validation,

withdrawal (defined in PostTradeEventsBase.model group)

All Direct / Indirect Based Elements (1):

nonpublicExecutionReport

Known Usage Locations

As direct type of elements (1):

nonpublicExecutionReport

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

NonpublicExecutionReport

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="NonpublicExecutionReport">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:element minOccurs="0" name="asOfDate" type="IdentifiedDate"/>

<xsd:element minOccurs="0" name="asOfTime" type="xsd:time"/>

<xsd:group minOccurs="0" ref="PortfolioReferenceBase.model"/>

<xsd:choice minOccurs="0">

<xsd:sequence>

<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>

<xsd:element minOccurs="0" name="trade" type="Trade"/>

</xsd:sequence>

<xsd:group ref="PostTradeEventsBase.model"/>

<xsd:group ref="ChangeEventsBase.model"/>

<xsd:group ref="OptionsEventsBase.model"/>

<xsd:element ref="additionalEvent"/>

</xsd:choice>

<xsd:group minOccurs="0" ref="EventValuation.model"/>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/26)

additionalEvent

Type:	AdditionalEvent, complex content
Abstract:	(may not be used directly in instance XML documents)

XML Source (see within schema source)

<xsd:element ref="additionalEvent"/>

asOfDate

Type:

IdentifiedDate, simple content

The date for which this document reports positions and valuations.

Simple Content

xsd:date

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="asOfDate" type="IdentifiedDate"/>

asOfTime

Type:

xsd:time, predefined, simple content

The time for which this report was generated (i.e., the cut-off time of the report).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="asOfTime" type="xsd:time"/>

originatingEvent

Type:

OriginatingEvent, simple content

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (see within schema source)

<xsd:element minOccurs="0" name="originatingEvent" type="OriginatingEvent"/>

trade

Type:

Trade, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="trade" type="Trade"/>
