element <mutualFund> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
MutualFund
Content:
complex, 1 attribute, 9 elements
Subst.Gr:
substitutes for underlyingAsset
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

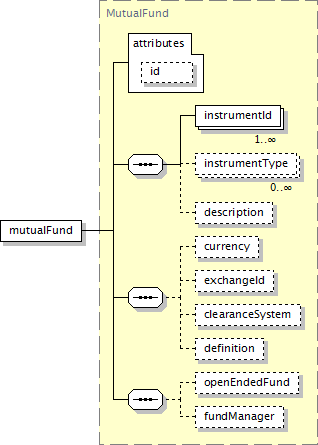

Component Diagram
XML Representation Summary
<mutualFund

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, openEndedFund?, fundManager?
</mutualFund>
Content model elements (9):
clearanceSystem,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
fundManager (in mutualFund),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
openEndedFund
May be included in elements by substitutions (9):
basketConstituent,
instrumentSet,
instrumentTradeDetails,
point (in dataPoints),
singleUnderlyer,
underlyer (in future),
underlyer (in genericProduct),
underlyer (in option),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Annotation
Identifies the class of unit issued by a fund.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="mutualFund" substitutionGroup="underlyingAsset" type="MutualFund"/>
