element <future> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Future
Content:
complex, 1 attribute, 16 elements
Subst.Gr:
substitutes for underlyingAsset
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

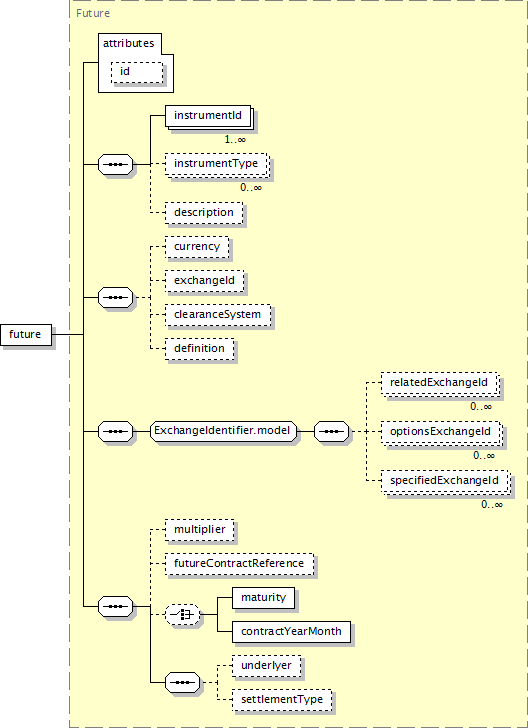

Component Diagram
XML Representation Summary
<future

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*, multiplier?, futureContractReference?, (maturity | contractYearMonth)?, underlyer?, settlementType?
</future>
Content model elements (16):
clearanceSystem,
contractYearMonth,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
futureContractReference,
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
maturity (in future),
multiplier (in future),
optionsExchangeId,
relatedExchangeId,
settlementType (in future),
specifiedExchangeId,
underlyer (in future)
May be included in elements by substitutions (9):
basketConstituent,
instrumentSet,
instrumentTradeDetails,
point (in dataPoints),
singleUnderlyer,
underlyer (in future),
underlyer (in genericProduct),
underlyer (in option),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Annotation
Identifies the underlying asset when it is a listed future contract.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="future" substitutionGroup="underlyingAsset" type="Future"/>
