element <option> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeTradedOption
Content:
complex, 1 attribute, 20 elements
Subst.Gr:
substitutes for underlyingAsset
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

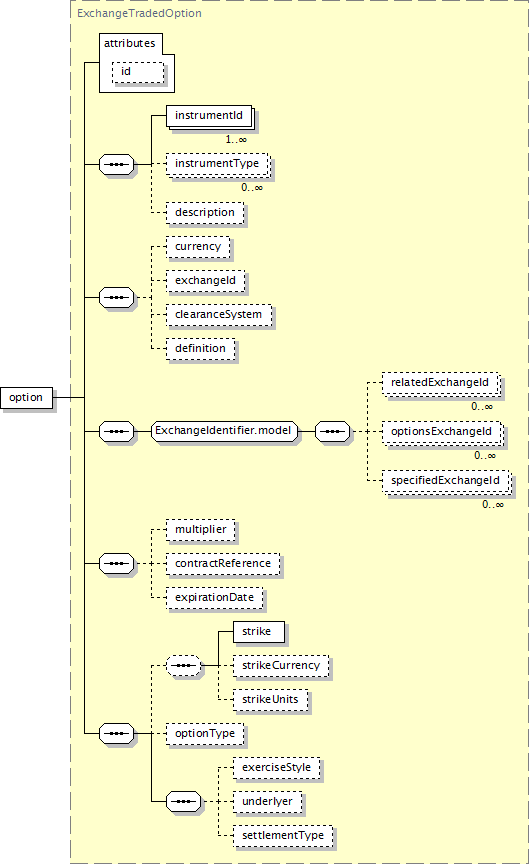

Component Diagram
XML Representation Summary
<option

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*, multiplier?, contractReference?, expirationDate?, (strike, strikeCurrency?, strikeUnits?)?, optionType?, exerciseStyle?, underlyer?, settlementType?
</option>
Content model elements (20):
clearanceSystem,
contractReference (defined in ExchangeTradedContract complexType),
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
exerciseStyle (in option),
expirationDate (defined in ExchangeTradedContract complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
multiplier (defined in ExchangeTradedContract complexType),
optionType (in option),
optionsExchangeId,
relatedExchangeId,
settlementType (in option),
specifiedExchangeId,
strike (in option),
strikeCurrency,
strikeUnits,
underlyer (in option)
May be included in elements by substitutions (9):
basketConstituent,
instrumentSet,
instrumentTradeDetails,
point (in dataPoints),
singleUnderlyer,
underlyer (in future),
underlyer (in genericProduct),
underlyer (in option),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Annotation
Identifies the underlying asset when it is a listed option contract.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="option" substitutionGroup="underlyingAsset" type="ExchangeTradedOption"/>
