element <security> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
GenericSecurity
Content:
complex, 1 attribute, 7 elements
Subst.Gr:
substitutes for underlyingAsset
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
at 2 locations

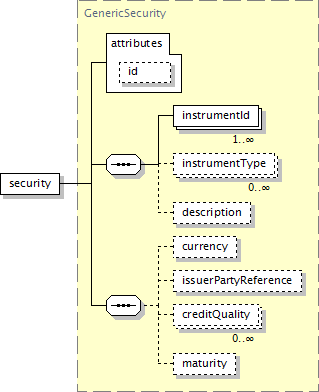

Component Diagram
XML Representation Summary
<security

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, issuerPartyReference?, creditQuality*, maturity?
</security>
Content model elements (7):
creditQuality (in security),
currency (in security),
description (defined in IdentifiedAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
issuerPartyReference (in security),
maturity (in security)
Included in content model of elements (3):
nonCash,
principal (in securityLending),
repo
May be included in elements by substitutions (9):
basketConstituent,
instrumentSet,
instrumentTradeDetails,
point (in dataPoints),
singleUnderlyer,
underlyer (in future),
underlyer (in genericProduct),
underlyer (in option),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Known Usage Locations
Annotation
Identifies a security of implicit type (derivable from the security reference data).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="security" substitutionGroup="underlyingAsset" type="GenericSecurity"/>
