element <optionsExchangeId> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ExchangeId
Content:	simple, 1 attribute
Defined:	locally within ExchangeIdentifier.model group in fpml-asset-5-13.xsd; see XML source

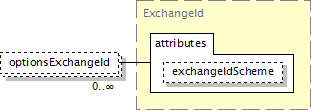

Component Diagram

XML Representation Summary

<optionsExchangeId

exchangeIdScheme

xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC"

Content:

{ xsd:normalizedString }

</optionsExchangeId>

Simple Content Detail:

MaxLength:	255
MinLength:	1

Included in content model of elements (14):

equity,

exchangeTradedContractNearest (in rateOfReturn),

exchangeTradedContractNearest (in variance),

exchangeTradedFund,

extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),

extraordinaryEvents (defined in NettedSwapBase complexType),

extraordinaryEvents (in equityOptionTransactionSupplement),

extraordinaryEvents (in equitySwapTransactionSupplement),

extraordinaryEvents (in returnSwap),

Annotation

A short form unique identifier for an exchange on which the reference option contract is listed. This is to address the case where the reference exchange for the future is different than the one for the option. The options Exchange is referenced on share options when Merger Elections are selected as Options Exchange Adjustment.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="optionsExchangeId" type="ExchangeId"/>
