element <equity> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
EquityAsset
Content:
complex, 1 attribute, 10 elements
Subst.Gr:
substitutes for underlyingAsset
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
at 1 location

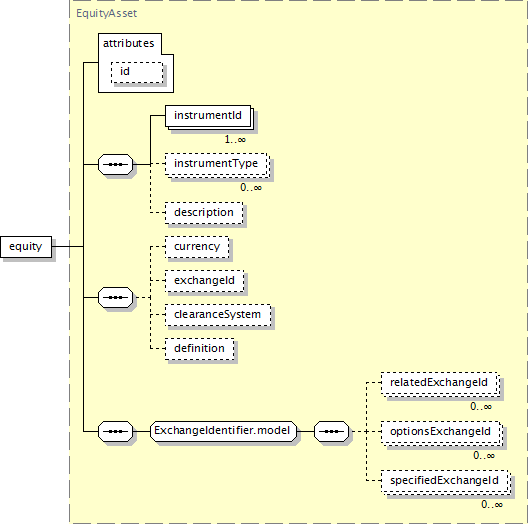

Component Diagram
XML Representation Summary
<equity

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*
</equity>
Content model elements (10):
clearanceSystem,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
optionsExchangeId,
relatedExchangeId,
specifiedExchangeId
Included in content model of elements (2):
relativePrice, repo
May be included in elements by substitutions (9):
basketConstituent,
instrumentSet,
instrumentTradeDetails,
point (in dataPoints),
singleUnderlyer,
underlyer (in future),
underlyer (in genericProduct),
underlyer (in option),
underlyer (in source in observation defined in PostTradeEventsBase.model group)
Known Usage Locations
Annotation
Identifies the underlying asset when it is a listed equity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="equity" substitutionGroup="underlyingAsset" type="EquityAsset"/>
