element <specifiedExchangeId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ExchangeId
Content:
simple, 1 attribute
Defined:
locally within ExchangeIdentifier.model group in fpml-asset-5-13.xsd; see XML source

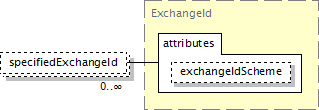

Component Diagram
XML Representation Summary
<specifiedExchangeId

exchangeIdScheme
 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC"

>

Content:
{ xsd:normalizedString }
</specifiedExchangeId>
Simple Content Detail:
MaxLength:
255
MinLength:
1
Included in content model of elements (14):
equity,
exchangeTradedContractNearest (in rateOfReturn),
exchangeTradedContractNearest (in variance),
exchangeTradedFund,
extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),
extraordinaryEvents (defined in NettedSwapBase complexType),
extraordinaryEvents (in equityOptionTransactionSupplement),
extraordinaryEvents (in equitySwapTransactionSupplement),
extraordinaryEvents (in returnSwap),
future,
index,
option,
underlyingEquity,
warrant
Annotation
A short form unique identifier for a specified exchange. If the element is not present then the exchange shall be default terms as defined in the MCA; unless otherwise specified in the Transaction Supplement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="specifiedExchangeId" type="ExchangeId"/>
