complexType "Index"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 11 elements
Defined:
globally in fpml-asset-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

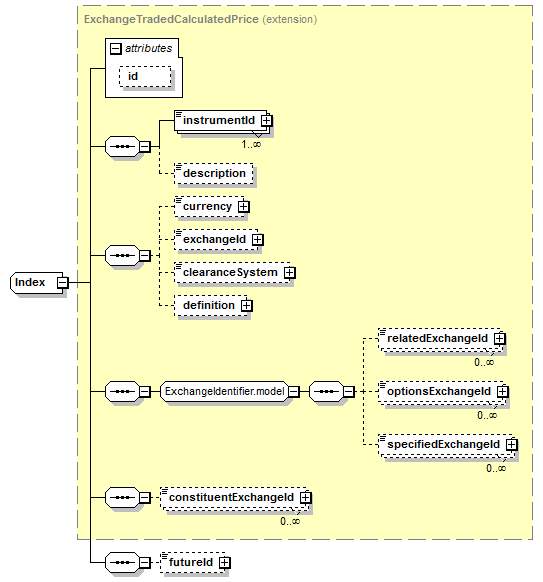

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (11):
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
All Direct / Indirect Based Elements (1):
index
Known Usage Locations
Annotation
A published index whose price depends on exchange traded constituents.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          ExchangeTraded (extension)
              ExchangeTradedCalculatedPrice (extension)
                  Index
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="Index">
<xsd:complexContent>
<xsd:extension base="ExchangeTradedCalculatedPrice">
<xsd:sequence>
<xsd:element minOccurs="0" name="futureId" type="FutureId"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
futureId
Type:
FutureId, simple content
A short form unique identifier for the reference future contract in the case of an index underlyer.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="futureId" type="FutureId"/>
