complexType "ExchangeTraded"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 9 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-asset-5-8.xsd; see XML source
Used:	at 4 locations

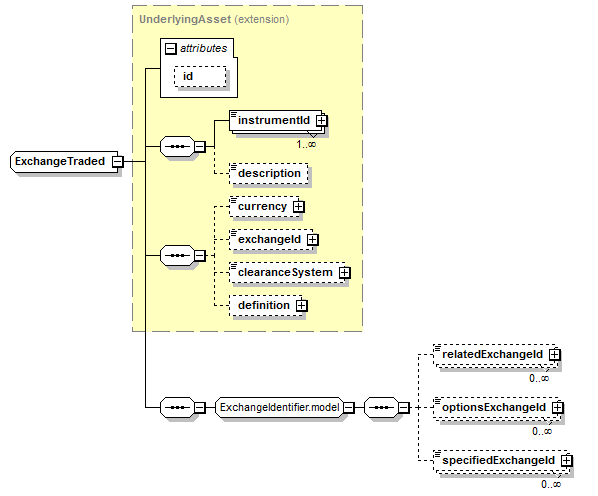

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

instrumentId+, description?, currency?, exchangeId?, clearanceSystem?, definition?, relatedExchangeId*, optionsExchangeId*, specifiedExchangeId*

</...>

Content Model Elements (9):

clearanceSystem,

currency (defined in UnderlyingAsset complexType),

definition (defined in UnderlyingAsset complexType),

description (defined in IdentifiedAsset complexType),

exchangeId (defined in UnderlyingAsset complexType),

instrumentId (defined in IdentifiedAsset complexType),

optionsExchangeId,

relatedExchangeId,

specifiedExchangeId

Known Direct Subtypes (4):

EquityAsset, ExchangeTradedCalculatedPrice, ExchangeTradedContract, Future

Known Indirect Subtypes (3):

ExchangeTradedFund, ExchangeTradedOption, Index

All Direct / Indirect Based Elements (8):

equity,

exchangeTradedContractNearest (in rateOfReturn),

exchangeTradedContractNearest (in variance),

Known Usage Locations

In derivations of other global types (4):

EquityAsset (as extension base),

ExchangeTradedCalculatedPrice (as extension base),

ExchangeTradedContract (as extension base),

Future (as extension base)

Annotation

An abstract base class for all exchange traded financial products.

Type Definition Detail

Type Derivation Tree

Asset (extension)

IdentifiedAsset (extension)

UnderlyingAsset (extension)

ExchangeTraded

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="ExchangeTraded">

<xsd:complexContent>

<xsd:extension base="UnderlyingAsset">

<xsd:sequence>

<xsd:group ref="ExchangeIdentifier.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
