complexType "BondOption"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 26 elements
Defined:
globally in fpml-bond-option-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

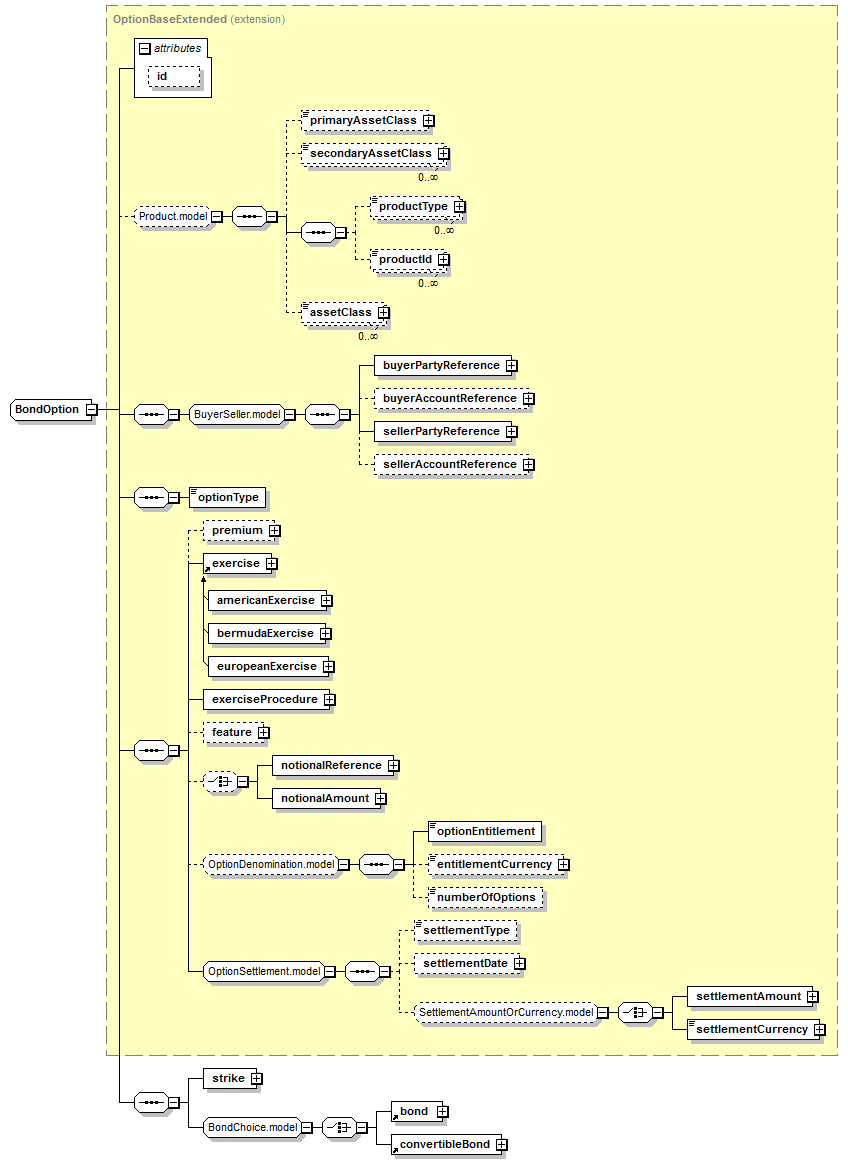

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (26):
assetClass,
bond,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
convertibleBond,
entitlementCurrency,
exercise,
exerciseProcedure (defined in OptionBaseExtended complexType),
feature (defined in OptionBaseExtended complexType),
notionalAmount (defined in OptionBaseExtended complexType),
notionalReference (defined in OptionBaseExtended complexType),
numberOfOptions (defined in OptionDenomination.model group),
optionEntitlement (defined in OptionDenomination.model group),
optionType (defined in OptionBase complexType),
premium (defined in OptionBaseExtended complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
strike (in bondOption)
All Direct / Indirect Based Elements (1):
bondOption
Known Usage Locations
Annotation
A Bond Option
Type Definition Detail
Type Derivation Tree
Product (extension)
  Option (extension)
      OptionBase (extension)
          OptionBaseExtended (extension)
              BondOption
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BondOption">
<xsd:complexContent>
<xsd:extension base="OptionBaseExtended">
<xsd:sequence>
<xsd:element name="strike" type="BondOptionStrike"/>
<xsd:group ref="BondChoice.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/26)
strike
Type:
BondOptionStrike, complex content
Strike of the the Bond Option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strike" type="BondOptionStrike"/>
