complexType "OptionExerciseAmounts"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 12 elements
Defined:	globally in fpml-business-events-5-8.xsd; see XML source
Includes:	definitions of 12 elements
Used:	at 1 location

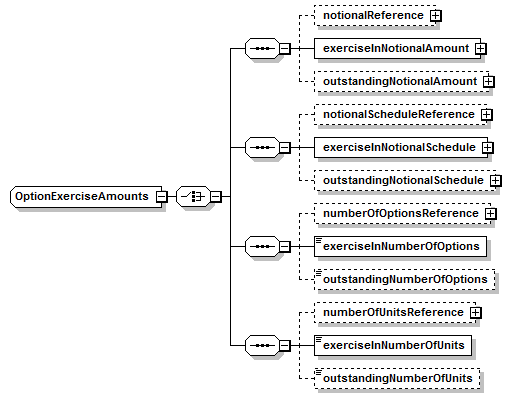

Content Model Diagram

XML Representation Summary

<...>

Content:

(notionalReference?, exerciseInNotionalAmount, outstandingNotionalAmount?) | (notionalScheduleReference?, exerciseInNotionalSchedule, outstandingNotionalSchedule?) | (numberOfOptionsReference?, exerciseInNumberOfOptions, outstandingNumberOfOptions?) | (numberOfUnitsReference?, exerciseInNumberOfUnits, outstandingNumberOfUnits?)

</...>

Content Model Elements (12):

All Direct / Indirect Based Elements (1):

specifiedExercise

Known Usage Locations

As direct type of elements (1):

specifiedExercise

XML Source (w/o annotations (8); see within schema source)

<xsd:complexType name="OptionExerciseAmounts">

<xsd:choice>

<xsd:sequence>

<xsd:element minOccurs="0" name="notionalReference" type="NotionalReference"/>

<xsd:element name="exerciseInNotionalAmount" type="Money"/>

<xsd:element minOccurs="0" name="outstandingNotionalAmount" type="Money"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element minOccurs="0" name="notionalScheduleReference" type="NotionalReference"/>

<xsd:element name="exerciseInNotionalSchedule" type="NonNegativeAmountSchedule"/>

<xsd:element minOccurs="0" name="outstandingNotionalSchedule" type="NonNegativeAmountSchedule"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element minOccurs="0" name="numberOfOptionsReference" type="NumberOfOptionsReference"/>

<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>

<xsd:element minOccurs="0" name="outstandingNumberOfOptions" type="xsd:decimal"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element minOccurs="0" name="numberOfUnitsReference" type="NumberOfUnitsReference"/>

<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>

<xsd:element minOccurs="0" name="outstandingNumberOfUnits" type="xsd:decimal"/>

</xsd:sequence>

</xsd:choice>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 12/12)

exerciseInNotionalAmount

Type:

Money, complex content

Specifies the fixed amount by which the option should be exercised expressed as notional amount.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="exerciseInNotionalAmount" type="Money"/>

exerciseInNotionalSchedule

Type:

NonNegativeAmountSchedule, complex content

Specifies the amount by which the option should be exercised expressed as notional schedule.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="exerciseInNotionalSchedule" type="NonNegativeAmountSchedule"/>

exerciseInNumberOfOptions

Type:

xsd:decimal, predefined, simple content

Specifies the fixed amount by which the option should be exercised expressed as number of options.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="exerciseInNumberOfOptions" type="xsd:decimal"/>

exerciseInNumberOfUnits

Type:

xsd:decimal, predefined, simple content

Specifies the fixed amount by which the option should be exercised express as number of units.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="exerciseInNumberOfUnits" type="xsd:decimal"/>

notionalReference

Type:

NotionalReference, empty content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="notionalReference" type="NotionalReference"/>

notionalScheduleReference

Type:

NotionalReference, empty content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="notionalScheduleReference" type="NotionalReference"/>

numberOfOptionsReference

Type:

NumberOfOptionsReference, empty content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="numberOfOptionsReference" type="NumberOfOptionsReference"/>

numberOfUnitsReference

Type:

NumberOfUnitsReference, empty content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="numberOfUnitsReference" type="NumberOfUnitsReference"/>

outstandingNotionalAmount

Type:

Money, complex content

Specifies the Notional amount after the Change

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="outstandingNotionalAmount" type="Money"/>

outstandingNotionalSchedule

Type:

NonNegativeAmountSchedule, complex content

Specifies the Notional schedule after the Change

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="outstandingNotionalSchedule" type="NonNegativeAmountSchedule"/>

outstandingNumberOfOptions

Type:

xsd:decimal, predefined, simple content

Specifies the Number of Options after the Change.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="outstandingNumberOfOptions" type="xsd:decimal"/>

outstandingNumberOfUnits

Type:

xsd:decimal, predefined, simple content

Specifies the Number of Units

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="outstandingNumberOfUnits" type="xsd:decimal"/>
