complexType "NonNegativeAmountSchedule"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 14 locations

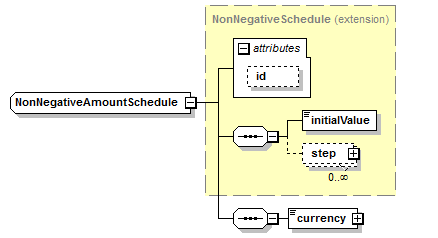

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (3):
currency (defined in NonNegativeAmountSchedule complexType),
initialValue (defined in NonNegativeSchedule complexType),
step (defined in NonNegativeSchedule complexType)
Known Direct Subtypes (1):
FxCounterCurrencyAmount
All Direct / Indirect Based Elements (19):
changeInNotionalSchedule,
counterCurrencyAmount (in accrualRegion),
counterCurrencyAmount (in fxAccrualForward),
counterCurrencyAmount (in fxAccrualOption),
counterCurrencyAmount (in fxTargetForward),
counterCurrencyAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
counterCurrencyAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
exerciseInNotionalSchedule,
notionalAmount (in accrualRegion),
notionalAmount (in fxAccrualDigitalOption),
notionalAmount (in fxAccrualForward),
notionalAmount (in fxAccrualOption),
notionalAmount (in fxRangeAccrual),
notionalAmount (in fxTargetForward),
notionalAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),
notionalAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),
notionalStepSchedule,
outstandingNotionalSchedule (defined in TradeLegNotionalScheduleChange.model group),
outstandingNotionalSchedule (in specifiedExercise)
Known Usage Locations
Annotation
A type defining a currency amount or a currency amount schedule.
Type Definition Detail
Type Derivation Tree
NonNegativeSchedule (extension)
  NonNegativeAmountSchedule
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="NonNegativeAmountSchedule">
<xsd:complexContent>
<xsd:extension base="NonNegativeSchedule">
<xsd:sequence>
<xsd:element name="currency" type="Currency"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
currency
Type:
Currency, simple content
The currency in which an amount is denominated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="currency" type="Currency"/>
