complexType "OptionExpiry"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 7 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

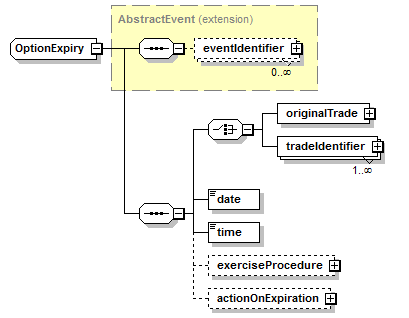

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (7):
actionOnExpiration,
date (in optionExpiry defined in OptionsEvents.model group),
eventIdentifier (defined in AbstractEvent complexType),
exerciseProcedure (in optionExpiry defined in OptionsEvents.model group),
originalTrade (in optionExpiry defined in OptionsEvents.model group),
time (in optionExpiry defined in OptionsEvents.model group),
tradeIdentifier (in optionExpiry defined in OptionsEvents.model group)
All Direct / Indirect Based Elements (1):
optionExpiry (defined in OptionsEvents.model group)
Known Usage Locations
Annotation
A structure describing an option expiring (i.e. passing its last exercise time and becoming worthless.)
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  OptionExpiry
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="OptionExpiry">
<xsd:complexContent>
<xsd:extension base="AbstractEvent">
<xsd:sequence>
<xsd:choice>
<xsd:element name="originalTrade" type="Trade"/>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
</xsd:choice>
<xsd:element name="date" type="xsd:date"/>
<xsd:element name="time" type="xsd:time"/>
<xsd:element minOccurs="0" name="exerciseProcedure" type="ExerciseProcedureOption"/>
<xsd:element minOccurs="0" name="actionOnExpiration" type="ActionOnExpiration"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/7)
actionOnExpiration
Type:
ActionOnExpiration, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="actionOnExpiration" type="ActionOnExpiration"/>
date
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="date" type="xsd:date"/>
exerciseProcedure
Type:
ExerciseProcedureOption, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="exerciseProcedure" type="ExerciseProcedureOption"/>
originalTrade
Type:
Trade, complex content
Fully describes the original trade (prior to the exercise).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="originalTrade" type="Trade"/>
time
Type:
xsd:time, predefined, simple content
XML Source (see within schema source)
<xsd:element name="time" type="xsd:time"/>
tradeIdentifier
Type:
PartyTradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
