element <partyTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 11 elements
Defined:
locally within TradeReferenceInformation complexType in fpml-business-events-5-8.xsd; see XML source

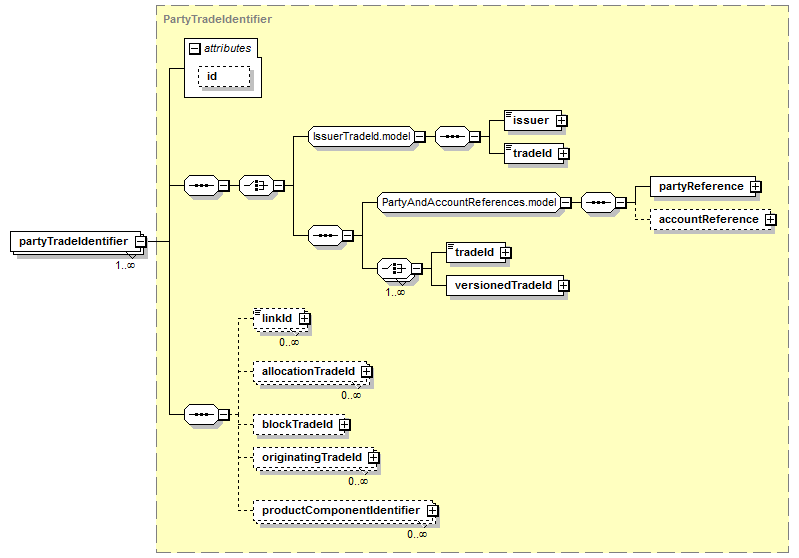

Content Model Diagram
XML Representation Summary
<partyTradeIdentifier

 =
xsd:ID

>

Content:
</partyTradeIdentifier>
Content model elements (11):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
tradeReferenceInformation
Annotation
This allows the acknowledging party to supply additional trade identifiers for a trade underlying a request relating to a business event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="1" name="partyTradeIdentifier" type="PartyTradeIdentifier"/>
