element <productComponentIdentifier> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ProductComponentIdentifier
Content:	complex, 3 elements
Defined:	locally within PartyTradeIdentifier complexType in fpml-doc-5-8.xsd; see XML source

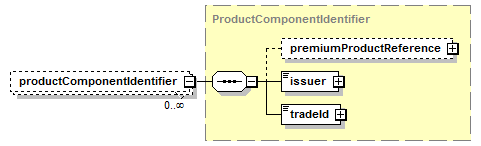

Content Model Diagram

XML Representation Summary

Content:

premiumProductReference?, issuer, tradeId

</productComponentIdentifier>

Content model elements (3):

issuer (in productComponentIdentifier),

premiumProductReference (in productComponentIdentifier),

tradeId (in productComponentIdentifier)

Included in content model of elements (20):

feeTradeIdentifier,

netTradeIdentifier,

newTradeIdentifier,

oldTradeIdentifier (defined in TradeChangeContent complexType),

oldTradeIdentifier (in novation),

partyTradeIdentifier (defined in Portfolio complexType),

partyTradeIdentifier (defined in Withdrawal complexType),

partyTradeIdentifier (in clearingEligibility),

partyTradeIdentifier (in tradeHeader),

partyTradeIdentifier (in tradeReference),

partyTradeIdentifier (in tradeReferenceInformation),

partyTradeIdentifier (in verificationStatusNotification),

resultingTradeIdentifier,

tradeIdentifier (defined in DeClear complexType),

tradeIdentifier (defined in OptionExercise complexType),

tradeIdentifier (defined in TradeChangeBase complexType),

tradeIdentifier (in optionExpiry defined in OptionsEvents.model group),

tradeIdentifier (in optionExpiry in maturityNotification),

tradeIdentifier (in tradeChangeAdviceRetracted),

tradeIdentifier (in tradeMaturity)

Annotation

Deprecated: The USIs of the components of this trade, when this trade contains a strategy.

XML Source (w/o annotations (1); see within schema source)

<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Added in error. Leftover from earlier proposal" maxOccurs="unbounded" minOccurs="0" name="productComponentIdentifier" type="ProductComponentIdentifier"/>
