element <originatingTradeId> (local)
complex, 1 attribute, 6 elements

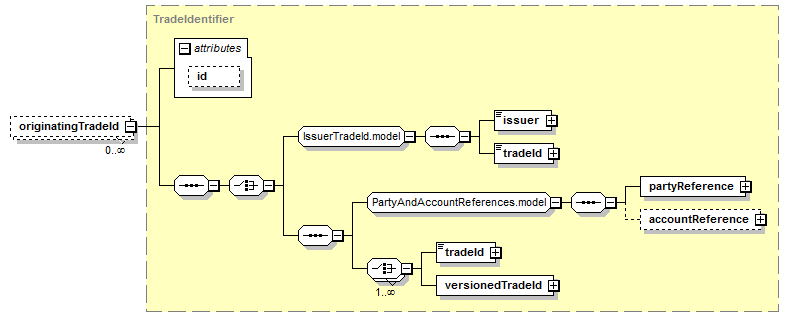

Content Model Diagram
XML Representation Summary
Content model elements (6):
accountReference (defined in PartyAndAccountReferences.model group),
issuer (defined in IssuerTradeId.model group),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
Included in content model of elements (20):
oldTradeIdentifier (defined in TradeChangeContent complexType),
oldTradeIdentifier (in novation),
partyTradeIdentifier (defined in Portfolio complexType),
partyTradeIdentifier (defined in Withdrawal complexType),
partyTradeIdentifier (in clearingEligibility),
partyTradeIdentifier (in tradeHeader),
partyTradeIdentifier (in tradeReference),
partyTradeIdentifier (in tradeReferenceInformation),
partyTradeIdentifier (in verificationStatusNotification),
tradeIdentifier (defined in DeClear complexType),
tradeIdentifier (defined in OptionExercise complexType),
tradeIdentifier (defined in TradeChangeBase complexType),
tradeIdentifier (in optionExpiry defined in OptionsEvents.model group),
tradeIdentifier (in optionExpiry in maturityNotification),
tradeIdentifier (in tradeChangeAdviceRetracted),
tradeIdentifier (in tradeMaturity)
The trade id of the trade(s) upon which this was based, for example the ID of the trade that was submitted for clearing if this is a cleared trade, or of the original trade if this was novated or cancelled and rebooked, or the list of trades that were netted or compressed together in the case of a compression event. The originatingEvent will explain why the trade was created; the existence and number of originatingTradeId elements should correspond to the originatingEvent, and they should be interpreted using that field. If the trade is inside a business event structure (such as a novation or a compression event) this element shuld not be populated; instead the event shoudl be used to represent the other trades.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="originatingTradeId" type="TradeIdentifier"/>
