complexType "CommodityNotionalQuantitySchedule"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 5 elements
Defined:	globally in fpml-com-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 2 elements
Used:	at 1 location

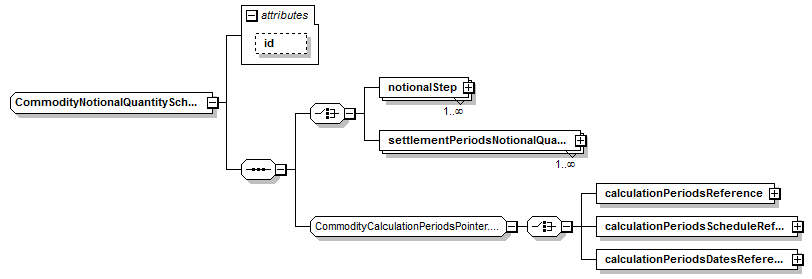

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

(notionalStep+ | settlementPeriodsNotionalQuantitySchedule+), (calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference)

</...>

Content Model Elements (5):

calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference, notionalStep, settlementPeriodsNotionalQuantitySchedule

All Direct / Indirect Based Elements (1):

notionalQuantitySchedule

Known Usage Locations

As direct type of elements (1):

notionalQuantitySchedule

Annotation

The Notional Quantity per Calculation Period. There must be a Notional Quantity step specified for each Calculation Period, regardless of whether the Notional Quantity changes or remains the same between periods.

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="CommodityNotionalQuantitySchedule">

<xsd:sequence>

<xsd:choice>

<xsd:element maxOccurs="unbounded" name="notionalStep" type="CommodityNotionalQuantity"/>

<xsd:element maxOccurs="unbounded" name="settlementPeriodsNotionalQuantitySchedule" type="CommoditySettlementPeriodsNotionalQuantitySchedule"/>

</xsd:choice>

<xsd:group ref="CommodityCalculationPeriodsPointer.model"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 2/5)

notionalStep

Type:

CommodityNotionalQuantity, complex content

The Notional Quantity per Calculation Period. There must be a Notional Quantity specified for each Calculation Period, regardless of whether the quantity changes or remains the same between periods.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="notionalStep" type="CommodityNotionalQuantity"/>

settlementPeriodsNotionalQuantitySchedule

Type:

CommoditySettlementPeriodsNotionalQuantitySchedule, complex content

For an electricity transaction, the Notional Quantity schedule for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="settlementPeriodsNotionalQuantitySchedule" type="CommoditySettlementPeriodsNotionalQuantitySchedule"/>
