complexType "GasPhysicalQuantity"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

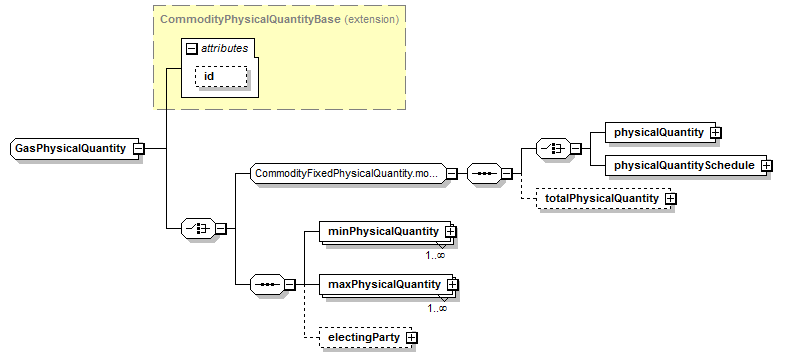

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (6):
electingParty,
maxPhysicalQuantity,
minPhysicalQuantity,
physicalQuantity (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),
totalPhysicalQuantity (defined in CommodityFixedPhysicalQuantity.model group)
All Direct / Indirect Based Elements (1):
deliveryQuantity (in gasPhysicalLeg)
Known Usage Locations
Annotation
The quantity of gas to be delivered.
Type Definition Detail
Type Derivation Tree
CommodityPhysicalQuantityBase (extension)
  GasPhysicalQuantity
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="GasPhysicalQuantity">
<xsd:complexContent>
<xsd:extension base="CommodityPhysicalQuantityBase">
<xsd:choice>
<xsd:group ref="CommodityFixedPhysicalQuantity.model"/>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="minPhysicalQuantity" type="CommodityNotionalQuantity"/>
<xsd:element maxOccurs="unbounded" name="maxPhysicalQuantity" type="CommodityNotionalQuantity"/>
<xsd:element minOccurs="0" name="electingParty" type="PartyReference"/>
</xsd:sequence>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/6)
electingParty
Type:
PartyReference, empty content
Indicates the party able to choose whether the gas is delivered for a particular period e.g. a swing or interruptible contract.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="electingParty" type="PartyReference"/>
maxPhysicalQuantity
Type:
CommodityNotionalQuantity, complex content
The maximum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="maxPhysicalQuantity" type="CommodityNotionalQuantity"/>
minPhysicalQuantity
Type:
CommodityNotionalQuantity, complex content
The minimum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="minPhysicalQuantity" type="CommodityNotionalQuantity"/>
