complexType "OilDelivery"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

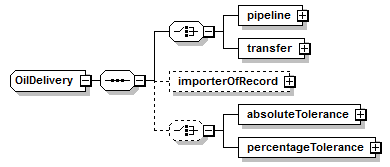

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
absoluteTolerance, importerOfRecord, percentageTolerance, pipeline, transfer
All Direct / Indirect Based Elements (1):
deliveryConditions (in oilPhysicalLeg)
Known Usage Locations
Annotation
The physical delivery conditions for an oil product.
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="OilDelivery">
<xsd:sequence>
<xsd:choice>
<xsd:element name="pipeline" type="OilPipelineDelivery"/>
<xsd:element name="transfer" type="OilTransferDelivery"/>
</xsd:choice>
<xsd:element minOccurs="0" name="importerOfRecord" type="PartyReference"/>
<xsd:choice minOccurs="0">
<xsd:element name="absoluteTolerance" type="AbsoluteTolerance"/>
<xsd:element name="percentageTolerance" type="PercentageTolerance"/>
</xsd:choice>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/5)
absoluteTolerance
Type:
AbsoluteTolerance, complex content
Specifies the allowable quantity tolerance as an absolute quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="absoluteTolerance" type="AbsoluteTolerance"/>
importerOfRecord
Type:
PartyReference, empty content
Specifies which party is the Importer of Record for the purposes of paying customs duties and applicable taxes or costs related to the import of the oil product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="importerOfRecord" type="PartyReference"/>
percentageTolerance
Type:
PercentageTolerance, complex content
Specifies the allowable quantity tolerance as a percentage of the quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="percentageTolerance" type="PercentageTolerance"/>
pipeline
Type:
OilPipelineDelivery, complex content
Specified the delivery conditions where the oil product is to be delivered by pipeline.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="pipeline" type="OilPipelineDelivery"/>
transfer
Type:
OilTransferDelivery, complex content
Specified the delivery conditions where the oil product is to be delivered by title transfer.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="transfer" type="OilTransferDelivery"/>
