complexType "OilPhysicalLeg"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 8 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

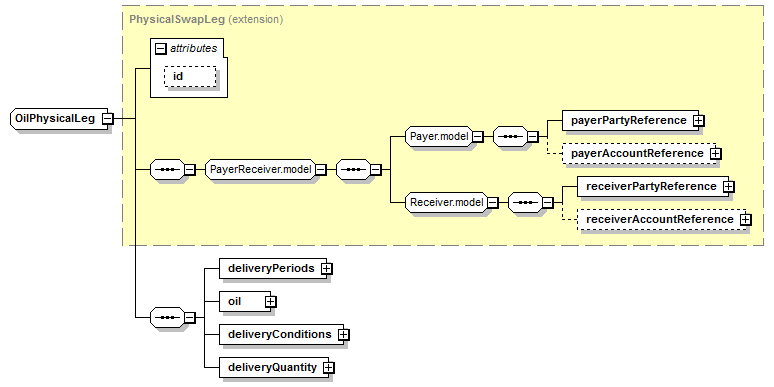

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (8):
payerPartyReference (defined in Payer.model group),
All Direct / Indirect Based Elements (1):
oilPhysicalLeg
Known Usage Locations
Annotation
Physically settled leg of a physically settled oil product transaction.
Type Definition Detail
Type Derivation Tree
Leg (extension)
  CommoditySwapLeg (extension)
      PhysicalSwapLeg (extension)
          OilPhysicalLeg
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="OilPhysicalLeg">
<xsd:complexContent>
<xsd:extension base="PhysicalSwapLeg">
<xsd:sequence>
<xsd:element name="deliveryPeriods" type="CommodityDeliveryPeriods"/>
<xsd:element name="oil" type="OilProduct"/>
<xsd:element name="deliveryConditions" type="OilDelivery"/>
<xsd:element name="deliveryQuantity" type="CommodityPhysicalQuantity"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/8)
deliveryConditions
Type:
OilDelivery, complex content
The physical delivery conditions for the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryConditions" type="OilDelivery"/>
deliveryPeriods
Type:
CommodityDeliveryPeriods, complex content
The different options for specifying the Delivery or Supply Periods. Unless the quantity or price is to vary periodically during the trade or physical delivery occurs on a periodic basis, periodsSchedule should be used and set to 1T.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryPeriods" type="CommodityDeliveryPeriods"/>
deliveryQuantity
Type:
CommodityPhysicalQuantity, complex content
The different options for specifying the quantity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryQuantity" type="CommodityPhysicalQuantity"/>
oil
Type:
OilProduct, complex content
The specification of the oil product to be delivered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="oil" type="OilProduct"/>
