complexType "ExecutionRetracted"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 12 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

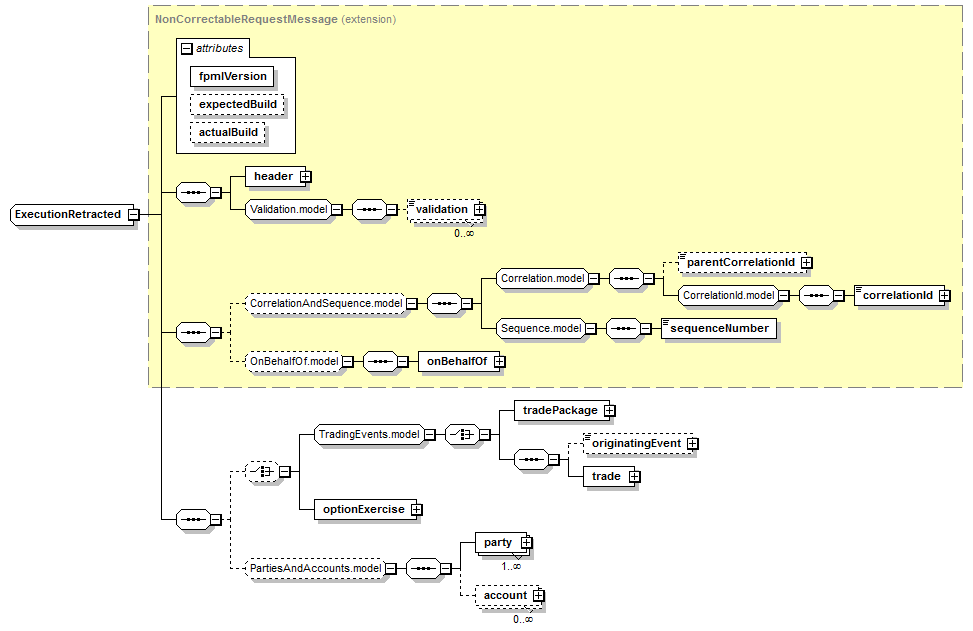

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (12):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
All Direct / Indirect Based Elements (1):
executionRetracted
Known Usage Locations
Annotation
A message retracting a notification to a party that a trade execution has occurred. (Typically this is sent by an execution platform to a participant.)
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              ExecutionRetracted
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ExecutionRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<!--<xsd:group ref="Events.model" minOccurs="0"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice minOccurs="0">
<xsd:group ref="TradingEvents.model"/>
<xsd:element name="optionExercise" type="OptionExercise"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/12)
optionExercise
Type:
OptionExercise, complex content
A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="optionExercise" type="OptionExercise"/>
