complexType "NonCorrectableRequestMessage"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 6 elements
Defined:	globally in fpml-msg-5-8.xsd; see XML source
Used:	at 15 locations

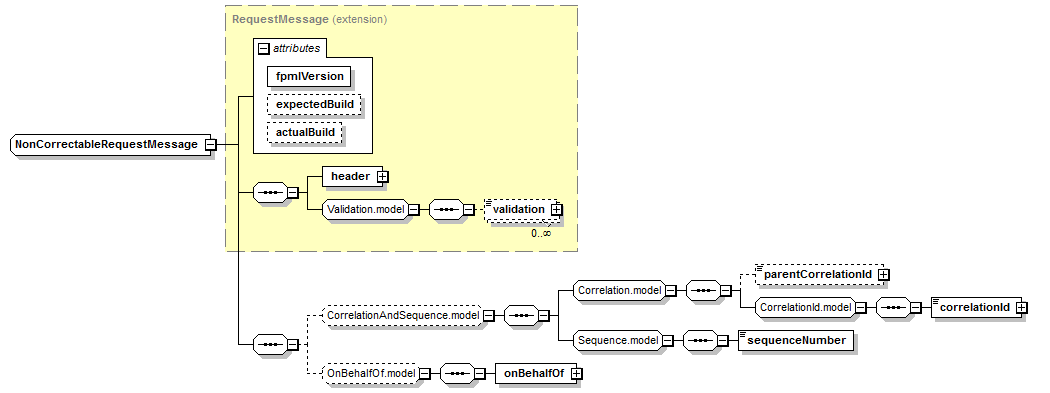

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

>

Content:

header, validation*, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?

</...>

Content Model Elements (6):

header (defined in RequestMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

sequenceNumber (defined in Sequence.model group),

Known Direct Subtypes (15):

ConfirmationRetracted, CreditEventNotificationRetracted, EventRetraction, ExecutionAdviceRetracted, ExecutionRetracted, MessageRetraction, RequestAllocationRetracted, RequestClearingRetracted, RequestConsentRetracted, RequestEventStatus, RequestExecutionRetracted, RequestRetransmission, RequestTradeReferenceInformationUpdateRetracted, TradeChangeAdviceRetracted, VerificationStatusNotification

All Direct / Indirect Based Elements (15):

creditEventNotificationRetracted, eventRetraction, executionAdviceRetracted, executionRetracted, messageRetraction, requestAllocationRetracted, requestClearingRetracted, requestConfirmationRetracted, requestConsentRetracted, requestEventStatus, requestExecutionRetracted, requestRetransmission, requestTradeReferenceInformationUpdateRetracted, tradeChangeAdviceRetracted, verificationStatusNotification

Known Usage Locations

In derivations of other global types (15):

ConfirmationRetracted (as extension base),

CreditEventNotificationRetracted (as extension base),

EventRetraction (as extension base),

ExecutionAdviceRetracted (as extension base),

ExecutionRetracted (as extension base),

MessageRetraction (as extension base),

RequestAllocationRetracted (as extension base),

RequestClearingRetracted (as extension base),

RequestConsentRetracted (as extension base),

RequestEventStatus (as extension base),

RequestExecutionRetracted (as extension base),

RequestRetransmission (as extension base),

RequestTradeReferenceInformationUpdateRetracted (as extension base),

TradeChangeAdviceRetracted (as extension base),

VerificationStatusNotification (as extension base)

Annotation

A type defining the content model for a request message that cannot be subsequently corrected or retracted.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

NonCorrectableRequestMessage

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="NonCorrectableRequestMessage">

<xsd:complexContent>

<xsd:extension base="RequestMessage">

<xsd:sequence>

<xsd:group minOccurs="0" ref="CorrelationAndSequence.model"/>

<xsd:group minOccurs="0" ref="OnBehalfOf.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
