complexType "RequestAllocationRetracted"
Namespace:
Content:
complex, 3 attributes, 10 elements
Defined:
Includes:
definitions of 2 elements
Used:

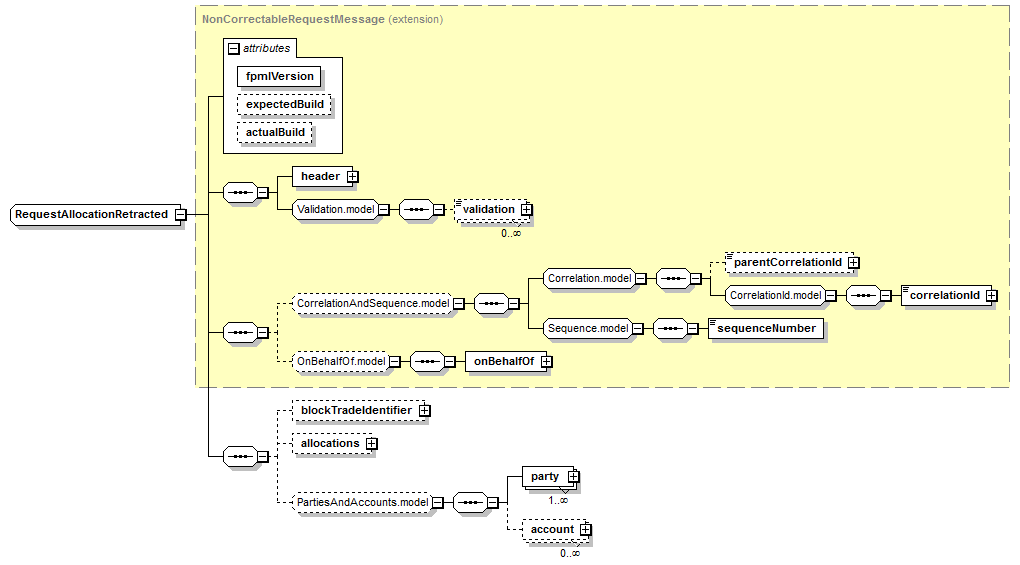

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (10):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
requestAllocationRetracted
Known Usage Locations
Annotation
A message withdrawing a request that a trade be split among several accounts.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              RequestAllocationRetracted
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestAllocationRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="blockTradeIdentifier" type="TradeIdentifier"/>
<xsd:element minOccurs="0" name="allocations" type="Allocations"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/10)
allocations
Type:
Allocations, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="allocations" type="Allocations"/>

blockTradeIdentifier
Type:
TradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="blockTradeIdentifier" type="TradeIdentifier"/>
