complexType "RequestConfirmation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 19 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

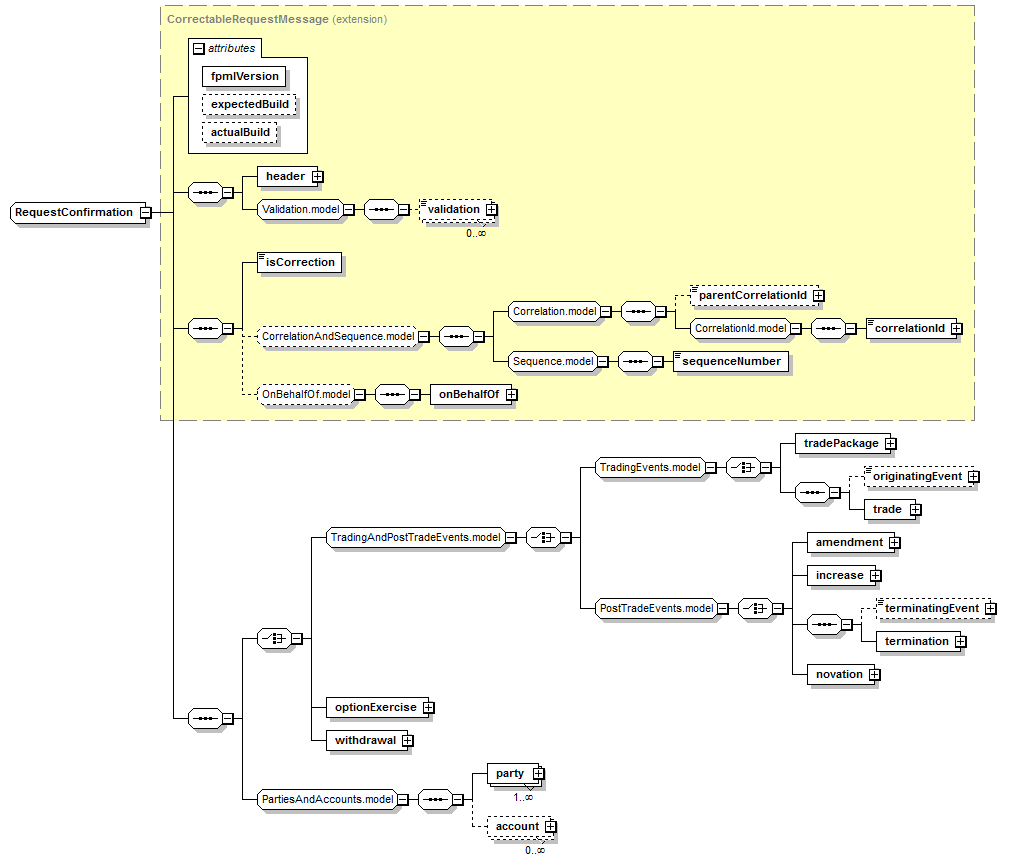

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (19):
amendment (defined in PostTradeEvents.model group),
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
All Direct / Indirect Based Elements (1):
requestConfirmation
Known Usage Locations
Annotation
A message type defining the start of the confirmation process. The message may be used to request the confirmation of a new trade or any other event supported by FpML such as novation, terminations, amendments, etc.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestConfirmation
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="RequestConfirmation">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<!--<xsd:group ref="Events.model"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice>
<xsd:group ref="TradingAndPostTradeEvents.model"/>
<xsd:element name="optionExercise" type="OptionExercise"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
</xsd:choice>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/19)
optionExercise
Type:
OptionExercise, complex content
A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="optionExercise" type="OptionExercise"/>
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
