complexType "RequestTradeReferenceInformationUpdateRetracted"
Namespace:
Content:
complex, 3 attributes, 9 elements
Defined:
Used:

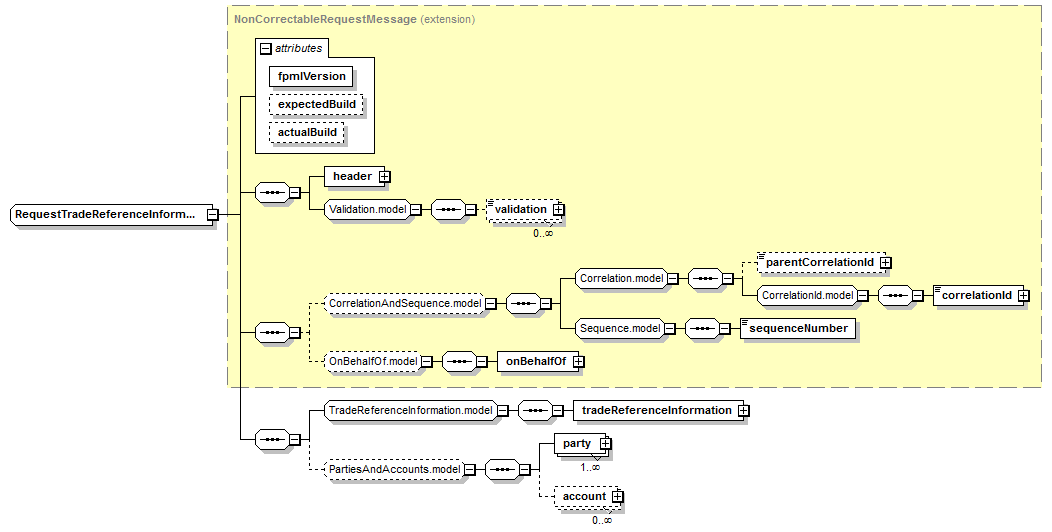

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (9):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
requestTradeReferenceInformationUpdateRetracted
Known Usage Locations
Annotation
Defines the structure for a message retracting a request to updated information about trade.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              RequestTradeReferenceInformationUpdateRetracted
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RequestTradeReferenceInformationUpdateRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:group ref="TradeReferenceInformation.model"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
