complexType "TradeChangeAdviceRetracted"
Namespace:
Content:
complex, 3 attributes, 11 elements
Defined:
Includes:
definitions of 3 elements
Used:

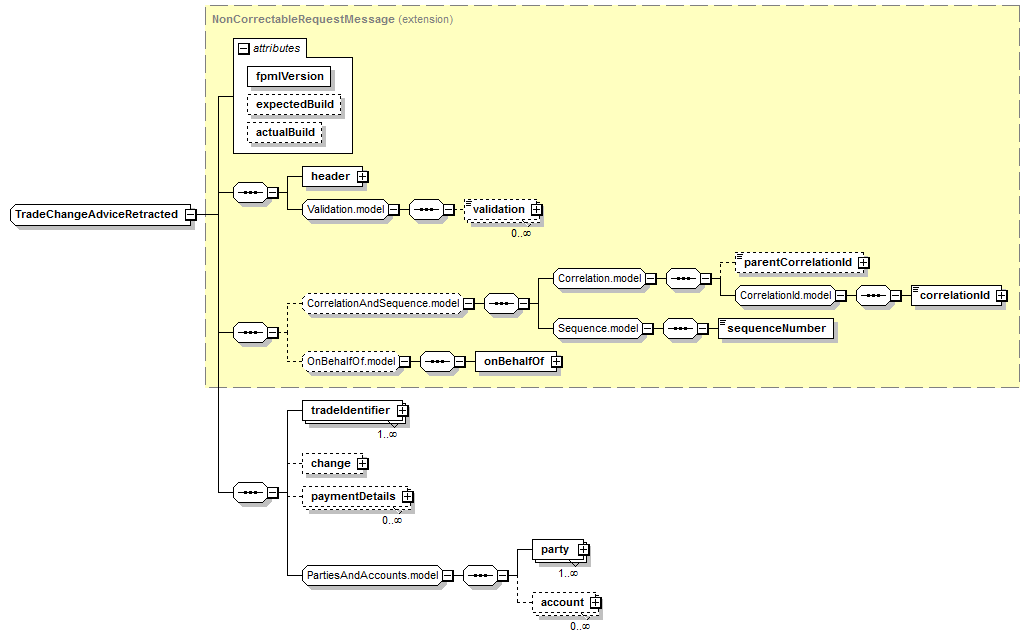

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (11):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
tradeChangeAdviceRetracted
Known Usage Locations
Annotation
Defines the structure for a message retracting a prior change advice.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              TradeChangeAdviceRetracted
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="TradeChangeAdviceRetracted">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element minOccurs="0" name="change" type="TradeChangeContent"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/11)
change
Type:
TradeChangeContent, complex content
Describes the details of the change being retracted.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="change" type="TradeChangeContent"/>

paymentDetails
Type:
PaymentDetails, complex content
Details of the payments, like amount breakdowns, settlement information.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="paymentDetails" type="PaymentDetails"/>

tradeIdentifier
Type:
PartyTradeIdentifier, complex content
The qualified identifiers of the subject trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
