complexType "CreditEventNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-credit-event-notification-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

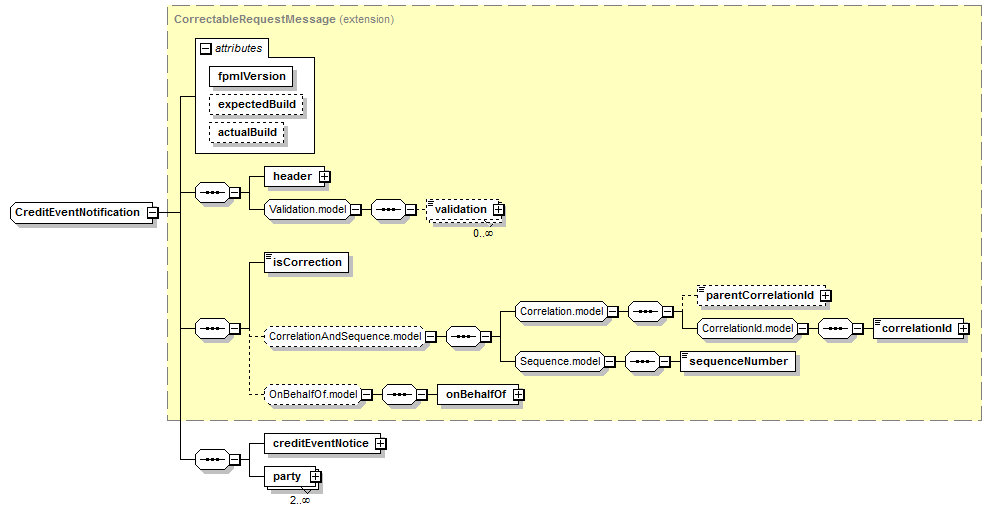

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (9):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
creditEventNotification
Known Usage Locations
Annotation
A message type defining the ISDA defined Credit Event Notice. ISDA defines it as an irrevocable notice from a Notifying Party to the other party that describes a Credit Event that occurred. A Credit Event Notice must contain detail of the facts relevant to the determination that a Credit Event has occurred.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              CreditEventNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="CreditEventNotification">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element name="creditEventNotice" type="CreditEventNoticeDocument"/>
<xsd:element maxOccurs="unbounded" minOccurs="2" name="party" type="Party"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/9)
creditEventNotice
Type:
CreditEventNoticeDocument, complex content
XML Source (see within schema source)
<xsd:element name="creditEventNotice" type="CreditEventNoticeDocument"/>
party
Type:
Party, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="2" name="party" type="Party"/>
