element <reportingRegime> (local) | XML Schema Documentation

element <reportingRegime> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ReportingRegime
Content:	complex, 13 elements
Defined:	locally within PartyTradeInformation complexType in fpml-doc-5-8.xsd; see XML source

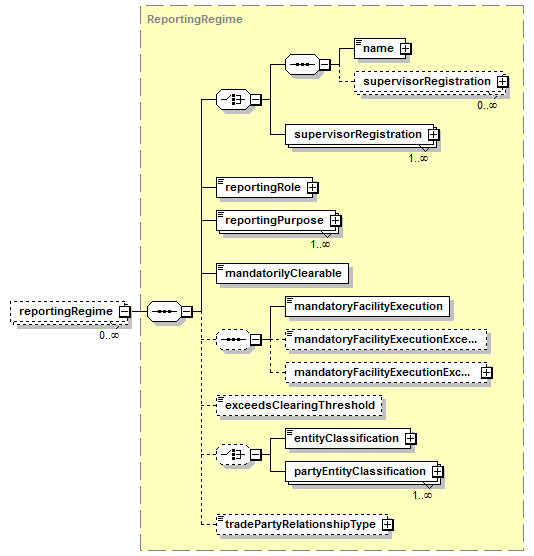

Content Model Diagram

XML Representation Summary

<reportingRegime>

Content:

((name, supervisorRegistration*) | supervisorRegistration+), reportingRole, reportingPurpose+, mandatorilyClearable, (mandatoryFacilityExecution, mandatoryFacilityExecutionException?, mandatoryFacilityExecutionExceptionDeclaration?)?, exceedsClearingThreshold?, (entityClassification | partyEntityClassification+)?, tradePartyRelationshipType?

</reportingRegime>

Content model elements (13):

entityClassification (in reportingRegime defined in PartyTradeInformation complexType),

exceedsClearingThreshold,

mandatorilyClearable (in reportingRegime defined in PartyTradeInformation complexType),

mandatoryFacilityExecution,

mandatoryFacilityExecutionException,

mandatoryFacilityExecutionExceptionDeclaration,

name (in reportingRegime defined in PartyTradeInformation complexType),

partyEntityClassification,

reportingPurpose,

reportingRole (in reportingRegime defined in PartyTradeInformation complexType),

supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType),

supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType),

tradePartyRelationshipType

Included in content model of elements (3):

partyInformation,

partyTradeInformation (in tradeHeader),

partyTradeInformation (in tradeReferenceInformation)

Annotation

Allows the organization to specify which if any relevant regulators or other supervisory bodies this is relevant for, and what reporting rules apply.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingRegime" type="ReportingRegime"/>
