complexType "LegAmount"
Namespace:
Content:
complex, 7 elements
Defined:
Includes:
definitions of 4 elements
Used:

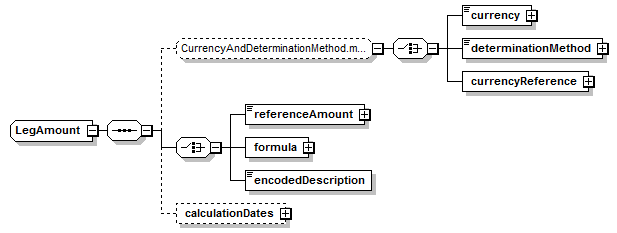

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (7):
calculationDates (defined in LegAmount complexType),
currency (defined in CurrencyAndDeterminationMethod.model group),
currencyReference,
determinationMethod (defined in CurrencyAndDeterminationMethod.model group),
encodedDescription,
formula (defined in LegAmount complexType),
referenceAmount (defined in LegAmount complexType)
Known Direct Subtypes (1):
ReturnSwapAmount
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type describing the amount that will paid or received on each of the payment dates. This type is used to define both the Equity Amount and the Interest Amount.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="LegAmount">
<xsd:sequence>
<xsd:group minOccurs="0" ref="CurrencyAndDeterminationMethod.model"/>
<xsd:choice>
<xsd:element name="referenceAmount" type="ReferenceAmount"/>
<xsd:element name="formula" type="Formula"/>
<xsd:element name="encodedDescription" type="xsd:base64Binary"/>
</xsd:choice>
<xsd:element minOccurs="0" name="calculationDates" type="AdjustableRelativeOrPeriodicDates"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/7)
calculationDates
Type:
Specifies the date on which a calculation or an observation will be performed for the purpose of defining the Equity Amount, and in accordance to the definition terms of this latter.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationDates" type="AdjustableRelativeOrPeriodicDates"/>

encodedDescription
Type:
xsd:base64Binary, predefined, simple content
Description of the leg amount when represented through an encoded image.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="encodedDescription" type="xsd:base64Binary"/>

formula
Type:
Formula, complex content
Specifies a formula, with its description and components.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="formula" type="Formula"/>

referenceAmount
Type:
ReferenceAmount, simple content
Specifies the reference Amount when this term either corresponds to the standard ISDA Definition (either the 2002 Equity Definition for the Equity Amount, or the 2000 Definition for the Interest Amount), or points to a term defined elsewhere in the swap document.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="referenceAmount" type="ReferenceAmount"/>
