complexType "ReturnSwapAmount"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

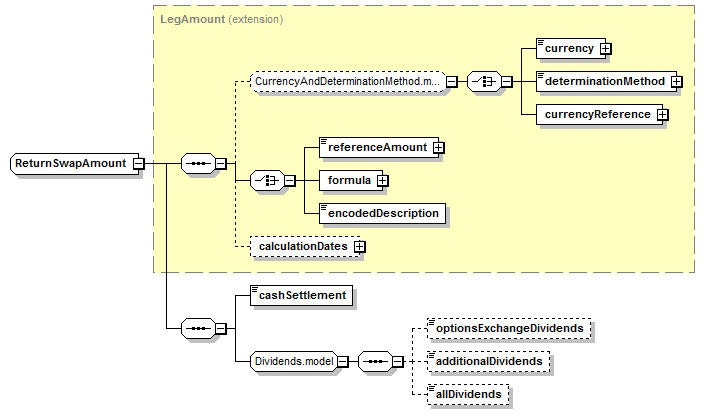

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (11):
additionalDividends,
allDividends,
calculationDates (defined in LegAmount complexType),
cashSettlement (in amount in returnLeg),
currency (defined in CurrencyAndDeterminationMethod.model group),
currencyReference,
determinationMethod (defined in CurrencyAndDeterminationMethod.model group),
encodedDescription,
formula (defined in LegAmount complexType),
optionsExchangeDividends,
referenceAmount (defined in LegAmount complexType)
All Direct / Indirect Based Elements (1):
amount (in returnLeg)
Known Usage Locations
Annotation
Specifies, in relation to each Payment Date, the amount to which the Payment Date relates. For Equity Swaps this element is equivalent to the Equity Amount term as defined in the ISDA 2002 Equity Derivatives Definitions.
Type Definition Detail
Type Derivation Tree
LegAmount (extension)
  ReturnSwapAmount
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ReturnSwapAmount">
<xsd:complexContent>
<xsd:extension base="LegAmount">
<xsd:sequence>
<xsd:element name="cashSettlement" type="xsd:boolean"/>
<xsd:group ref="Dividends.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
cashSettlement
Type:
xsd:boolean, predefined, simple content
If true, then cash settlement is applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="cashSettlement" type="xsd:boolean"/>
