complexType "CrossRate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-fx-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

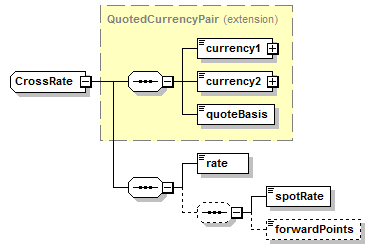

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (6):
currency1 (defined in QuotedCurrencyPair complexType),
currency2 (defined in QuotedCurrencyPair complexType),
forwardPoints (defined in CrossRate complexType),
quoteBasis (defined in QuotedCurrencyPair complexType),
rate (defined in CrossRate complexType),
spotRate (defined in CrossRate complexType)
All Direct / Indirect Based Elements (2):
crossRate (in exchangeRate defined in FxCoreDetails.model group),
crossRate (in exchangeRate in underlyer defined in GenericProduct complexType)
Known Usage Locations
Annotation
A type that is used for including the currency exchange rates used to cross between the traded currencies for non-base currency FX contracts.
Type Definition Detail
Type Derivation Tree
QuotedCurrencyPair (extension)
  CrossRate
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="CrossRate">
<xsd:complexContent>
<xsd:extension base="QuotedCurrencyPair">
<xsd:sequence>
<xsd:element name="rate" type="PositiveDecimal"/>
<xsd:sequence minOccurs="0">
<xsd:element name="spotRate" type="PositiveDecimal"/>
<xsd:element minOccurs="0" name="forwardPoints" type="xsd:decimal"/>
</xsd:sequence>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/6)
forwardPoints
Type:
xsd:decimal, predefined, simple content
An optional element used for deals consumated in the FX Forwards market. Forward points represent the interest rate differential between the two currencies traded and are quoted as a preminum or a discount. Forward points are added to, or subtracted from, the spot rate to create the rate of the forward trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="forwardPoints" type="xsd:decimal"/>
rate
Type:
PositiveDecimal, simple content
The exchange rate used to cross between the traded currencies.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rate" type="PositiveDecimal"/>
spotRate
Type:
PositiveDecimal, simple content
An optional element used for FX forwards and certain types of FX OTC options. For deals consumated in the FX Forwards Market, this represents the current market rate for a particular currency pair.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="spotRate" type="PositiveDecimal"/>
