element <counterCurrencyAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxCounterCurrencyAmount
Content:
complex, 1 attribute, 4 elements
Defined:
locally within FxAccrualPayoffLeverage complexType in fpml-fx-accruals-5-8.xsd; see XML source

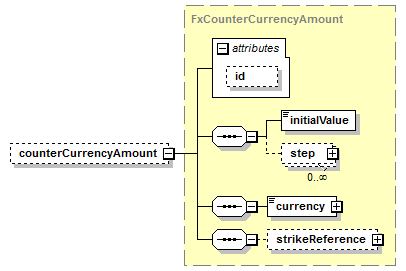

Content Model Diagram
XML Representation Summary
<counterCurrencyAmount

 =
xsd:ID

>

Content:
</counterCurrencyAmount>
Content model elements (4):
currency (defined in NonNegativeAmountSchedule complexType),
initialValue (defined in NonNegativeSchedule complexType),
step (defined in NonNegativeSchedule complexType),
strikeReference (defined in FxCounterCurrencyAmount complexType)
Included in content model of elements (1):
payoffLeverage (in vanillaPayoffRegion in fxAccrualForward)
Annotation
The opposite currency amount. The counterCurrencyAmount element is only optional if averageStrike component is present, in all other cases this element must be populated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="counterCurrencyAmount" type="FxCounterCurrencyAmount"/>
