complexType "NonNegativeSchedule"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 2 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 2 elements
Used:	at 1 location

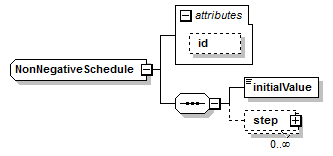

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

initialValue, step*

</...>

Content Model Elements (2):

initialValue (defined in NonNegativeSchedule complexType),

step (defined in NonNegativeSchedule complexType)

Known Direct Subtypes (1):

NonNegativeAmountSchedule

Known Indirect Subtypes (1):

FxCounterCurrencyAmount

All Direct / Indirect Based Elements (19):

changeInNotionalSchedule,

counterCurrencyAmount (in accrualRegion),

counterCurrencyAmount (in fxAccrualForward),

counterCurrencyAmount (in fxAccrualOption),

counterCurrencyAmount (in fxTargetForward),

counterCurrencyAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),

counterCurrencyAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),

exerciseInNotionalSchedule,

notionalAmount (in accrualRegion),

notionalAmount (in fxAccrualDigitalOption),

notionalAmount (in fxAccrualForward),

notionalAmount (in fxAccrualOption),

notionalAmount (in fxRangeAccrual),

notionalAmount (in fxTargetForward),

notionalAmount (in payoffLeverage defined in FxVanillaPayoffRegion complexType),

notionalAmount (in payoffLeverage in vanillaPayoffRegion in fxAccrualForward),

notionalStepSchedule,

outstandingNotionalSchedule (defined in TradeLegNotionalScheduleChange.model group),

outstandingNotionalSchedule (in specifiedExercise)

Known Usage Locations

In derivations of other global types (1):

NonNegativeAmountSchedule (as extension base)

Annotation

A type defining a schedule of non-negative rates or amounts in terms of an initial value and then a series of step date and value pairs. On each step date the rate or amount changes to the new step value. The series of step date and value pairs are optional. If not specified, this implies that the initial value remains unchanged over time.

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="NonNegativeSchedule">

<xsd:sequence>

<xsd:element name="initialValue" type="NonNegativeDecimal"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="step" type="NonNegativeStep"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 2/2)

initialValue

Type:

NonNegativeDecimal, simple content

The non-negative initial rate or amount, as the case may be. An initial rate of 5% would be represented as 0.05.

Simple Content

xsd:decimal

minInclusive:

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="initialValue" type="NonNegativeDecimal"/>

step

Type:

NonNegativeStep, complex content

The schedule of step date and non-negative value pairs. On each step date the associated step value becomes effective. A list of steps may be ordered in the document by ascending step date. An FpML document containing an unordered list of steps is still regarded as a conformant document.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="step" type="NonNegativeStep"/>
