element <notionalStepSchedule> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	NonNegativeAmountSchedule
Content:	complex, 1 attribute, 3 elements
Defined:	locally within Notional complexType in fpml-ird-5-8.xsd; see XML source

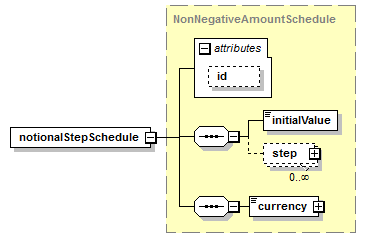

Content Model Diagram

XML Representation Summary

<notionalStepSchedule

xsd:ID

Content:

initialValue, step*, currency

</notionalStepSchedule>

Content model elements (3):

currency (defined in NonNegativeAmountSchedule complexType),

initialValue (defined in NonNegativeSchedule complexType),

step (defined in NonNegativeSchedule complexType)

Included in content model of elements (1):

notionalSchedule

Annotation

The notional amount or notional amount schedule expressed as explicit outstanding notional amounts and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="notionalStepSchedule" type="NonNegativeAmountSchedule"/>
