complexType "Swap"
Namespace:
Content:
complex, 1 attribute, 11 elements
Defined:
globally in fpml-ird-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:

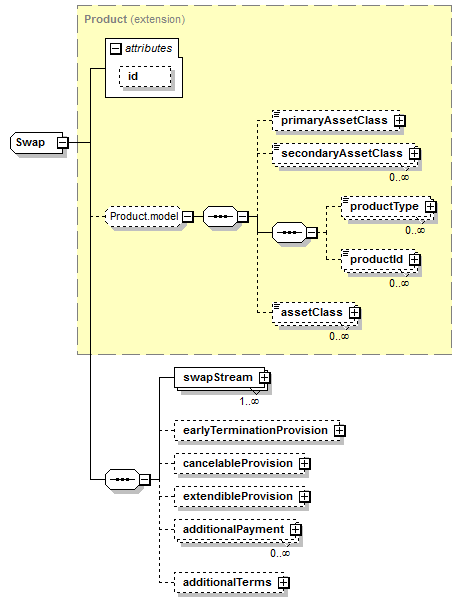

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (11):
additionalPayment (defined in Swap complexType),
earlyTerminationProvision (defined in Swap complexType),
productId (defined in Product.model group),
productType (defined in Product.model group),
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type defining swap streams and additional payments between the principal parties involved in the swap.
Type Definition Detail
Type Derivation Tree
Product (extension)
  Swap
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="Swap">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="swapStream" type="InterestRateStream"/>
<xsd:element minOccurs="0" name="earlyTerminationProvision" type="EarlyTerminationProvision"/>
<xsd:element minOccurs="0" name="cancelableProvision" type="CancelableProvision"/>
<xsd:element minOccurs="0" name="extendibleProvision" type="ExtendibleProvision"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>
<xsd:element minOccurs="0" name="additionalTerms" type="SwapAdditionalTerms"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/11)
additionalPayment
Type:
Payment, complex content
Additional payments between the principal parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="additionalPayment" type="Payment"/>

additionalTerms
Type:
SwapAdditionalTerms, complex content
Contains any additional terms to the swap contract.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="additionalTerms" type="SwapAdditionalTerms"/>

cancelableProvision
Type:
CancelableProvision, complex content
A provision that allows the specification of an embedded option within a swap giving the buyer of the option the right to terminate the swap, in whole or in part, on the early termination date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cancelableProvision" type="CancelableProvision"/>

earlyTerminationProvision
Type:
EarlyTerminationProvision, complex content
Parameters specifying provisions relating to the optional and mandatory early terminarion of a swap transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="earlyTerminationProvision" type="EarlyTerminationProvision"/>

extendibleProvision
Type:
ExtendibleProvision, complex content
A provision that allows the specification of an embedded option with a swap giving the buyer of the option the right to extend the swap, in whole or in part, to the extended termination date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="extendibleProvision" type="ExtendibleProvision"/>

swapStream
Type:
InterestRateStream, complex content
The swap streams.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="swapStream" type="InterestRateStream"/>
