complexType "AccruingFeePaymentNotification"
Namespace:
Content:
complex, 3 attributes, 14 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

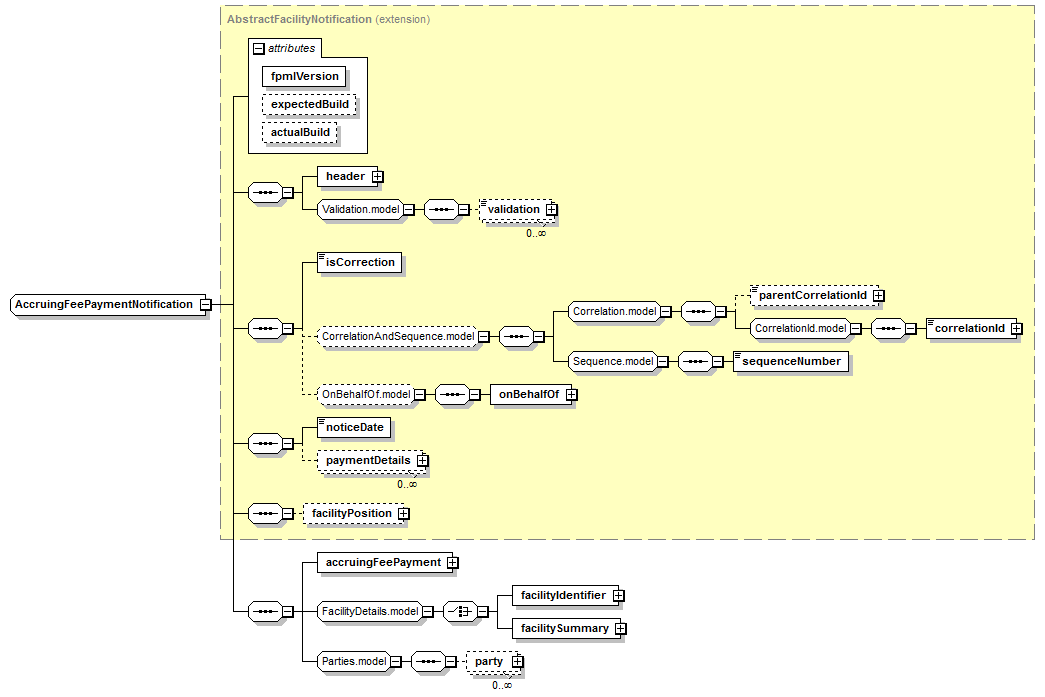

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (14):
accruingFeePayment,
correlationId,
facilityIdentifier (defined in FacilityDetails.model group),
facilityPosition (defined in AbstractFacilityNotification complexType),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
noticeDate,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in Parties.model group),
paymentDetails (defined in AbstractServicingNotification complexType),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
accruingFeePaymentNotification
Known Usage Locations
Annotation
A syndicated loan notification guaranteed to contain an on-going fee rate change business event.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractServicingNotification (extension)
                  AbstractFacilityNotification (extension)
                      AccruingFeePaymentNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="AccruingFeePaymentNotification">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityNotification">
<xsd:sequence>
<xsd:element name="accruingFeePayment" type="AccruingFeePayment"/>
<xsd:group ref="FacilityDetails.model"/>
<xsd:group ref="Parties.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/14)
accruingFeePayment
Type:
AccruingFeePayment, complex content
XML Source (see within schema source)
<xsd:element name="accruingFeePayment" type="AccruingFeePayment"/>
