complexType "LcNotification"
Namespace:
Content:
complex, 3 attributes, 16 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

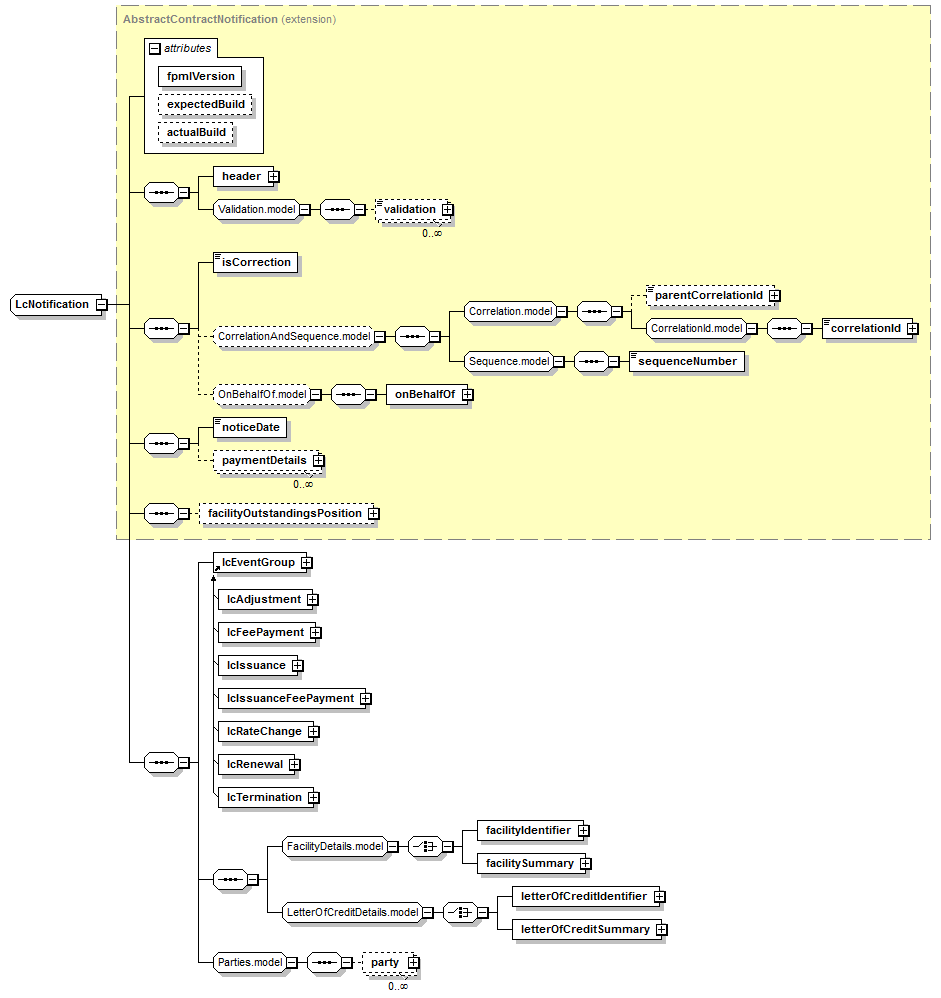

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (16):
correlationId,
facilityIdentifier (defined in FacilityDetails.model group),
facilityOutstandingsPosition (defined in AbstractContractNotification complexType),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
lcEventGroup,
letterOfCreditIdentifier,
letterOfCreditSummary,
noticeDate,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in Parties.model group),
paymentDetails (defined in AbstractServicingNotification complexType),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
lcNotification
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractServicingNotification (extension)
                  AbstractContractNotification (extension)
                      LcNotification
XML Source (see within schema source)
<xsd:complexType name="LcNotification">
<xsd:complexContent>
<xsd:extension base="AbstractContractNotification">
<xsd:sequence>
<xsd:element ref="lcEventGroup"/>
<xsd:sequence>
<xsd:group ref="FacilityDetails.model"/>
<xsd:group ref="LetterOfCreditDetails.model"/>
</xsd:sequence>
<xsd:group ref="Parties.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/16)
lcEventGroup
Type:
LcEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 7 elements
XML Source (see within schema source)
<xsd:element ref="lcEventGroup"/>
