complexType "AbstractContractNotification" | XML Schema Documentation

complexType "AbstractContractNotification"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 10 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 7 locations

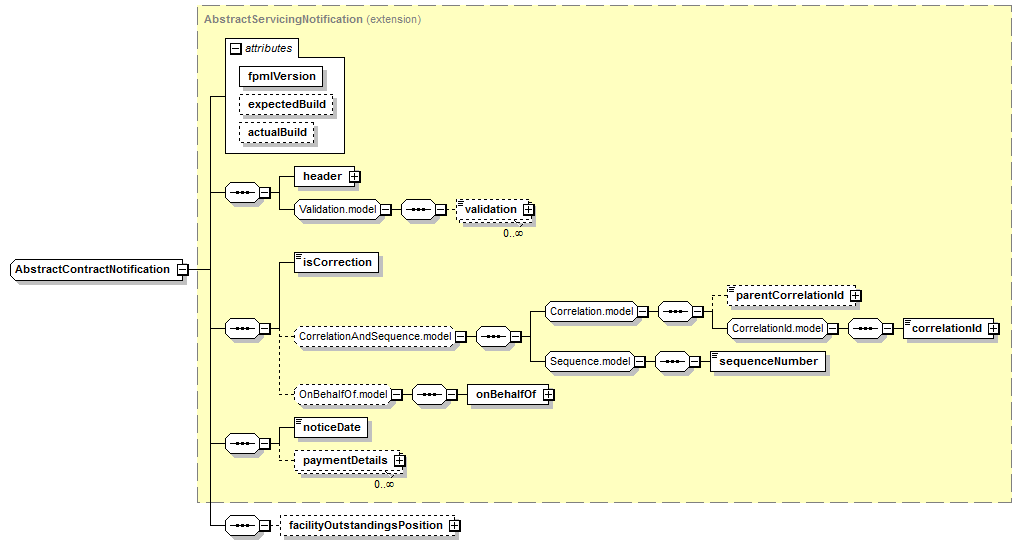

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

>

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, noticeDate, paymentDetails*, facilityOutstandingsPosition?

</...>

Content Model Elements (10):

facilityOutstandingsPosition (defined in AbstractContractNotification complexType),

header (defined in RequestMessage complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

paymentDetails (defined in AbstractServicingNotification complexType),

sequenceNumber (defined in Sequence.model group),

Known Direct Subtypes (7):

AccrualOptionChangeNotification, LcNotification, LoanContractNotification, NonRecurringFeePaymentNotification, PrepaymentNotification, RepaymentWithCANotification, RolloverNotification

All Direct / Indirect Based Elements (7):

accrualOptionChangeNotification, lcNotification, loanContractNotification, nonRecurringFeePaymentNotification, prepaymentNotification, repaymentWithCANotification, rolloverNotification

Known Usage Locations

In derivations of other global types (7):

AccrualOptionChangeNotification (as extension base),

LcNotification (as extension base),

LoanContractNotification (as extension base),

NonRecurringFeePaymentNotification (as extension base),

PrepaymentNotification (as extension base),

RepaymentWithCANotification (as extension base),

RolloverNotification (as extension base)

Annotation

An abstract base type for all syndicated loan notification messages. This abstract type is the basis for Facility/LoanContract Notification types. This forms the basis of the actual loan event notifications which occur through the life-cycle of a deal.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

AbstractServicingNotification (extension)

AbstractContractNotification

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="AbstractContractNotification">

<xsd:complexContent>

<xsd:extension base="AbstractServicingNotification">

<xsd:sequence>

<xsd:element minOccurs="0" name="facilityOutstandingsPosition" type="FacilityOutstandingsPosition"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/10)

facilityOutstandingsPosition

Type:

FacilityOutstandingsPosition, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="facilityOutstandingsPosition" type="FacilityOutstandingsPosition"/>
