complexType "MessageRetraction"
Namespace:
Content:
complex, 3 attributes, 7 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

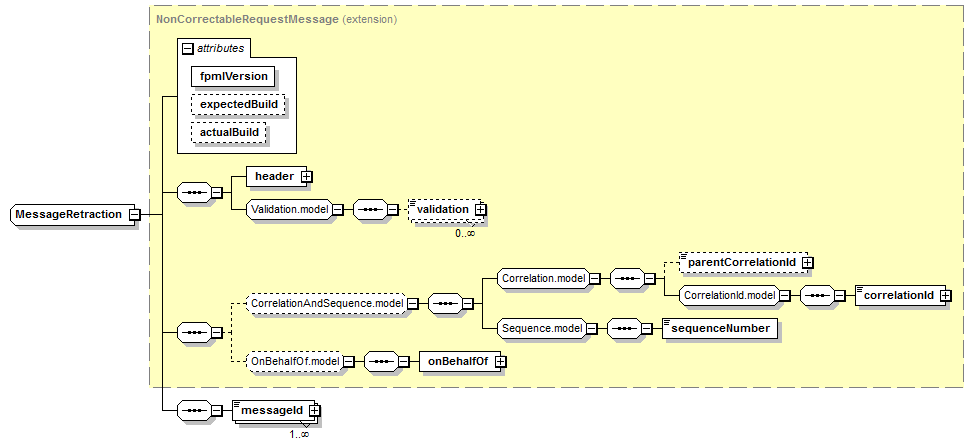

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (7):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
messageRetraction
Known Usage Locations
Annotation
A notification used to cancel a previous message confirmation.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          NonCorrectableRequestMessage (extension)
              MessageRetraction
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="MessageRetraction">
<xsd:complexContent>
<xsd:extension base="NonCorrectableRequestMessage">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="messageId" type="MessageId"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/7)
messageId
Type:
MessageId, simple content
The id that defines the specific message which is to be cancelled.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="messageId" type="MessageId"/>
