complexType "PrepaymentNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 18 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

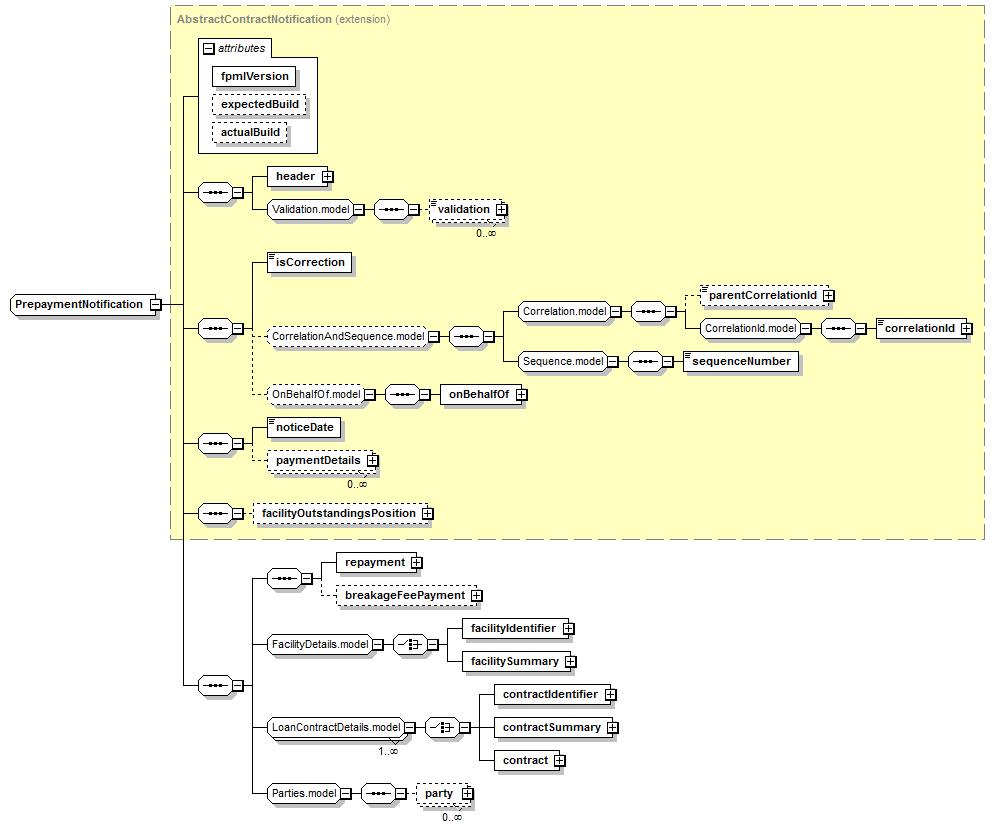

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (18):
breakageFeePayment (in prepaymentNotification),
contract (defined in LoanContractDetails.model group),
contractIdentifier,
contractSummary,
correlationId,
facilityIdentifier (defined in FacilityDetails.model group),
facilityOutstandingsPosition (defined in AbstractContractNotification complexType),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
noticeDate,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in Parties.model group),
paymentDetails (defined in AbstractServicingNotification complexType),
repayment (in prepaymentNotification),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
prepaymentNotification
Known Usage Locations
Annotation
A syndicated loan notification guaranteed to contain an on-going fee rate change business event.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractServicingNotification (extension)
                  AbstractContractNotification (extension)
                      PrepaymentNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="PrepaymentNotification">
<xsd:complexContent>
<xsd:extension base="AbstractContractNotification">
<xsd:sequence>
<xsd:sequence>
<xsd:element name="repayment" type="Repayment"/>
<xsd:element minOccurs="0" name="breakageFeePayment" type="BreakageFeePayment"/>
</xsd:sequence>
<xsd:group ref="FacilityDetails.model"/>
<xsd:group maxOccurs="unbounded" ref="LoanContractDetails.model"/>
<xsd:group ref="Parties.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/18)
breakageFeePayment
Type:
BreakageFeePayment, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="breakageFeePayment" type="BreakageFeePayment"/>
repayment
Type:
Repayment, complex content
XML Source (see within schema source)
<xsd:element name="repayment" type="Repayment"/>
