complexType "NetTradeIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 12 elements
Defined:
globally in fpml-repo-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

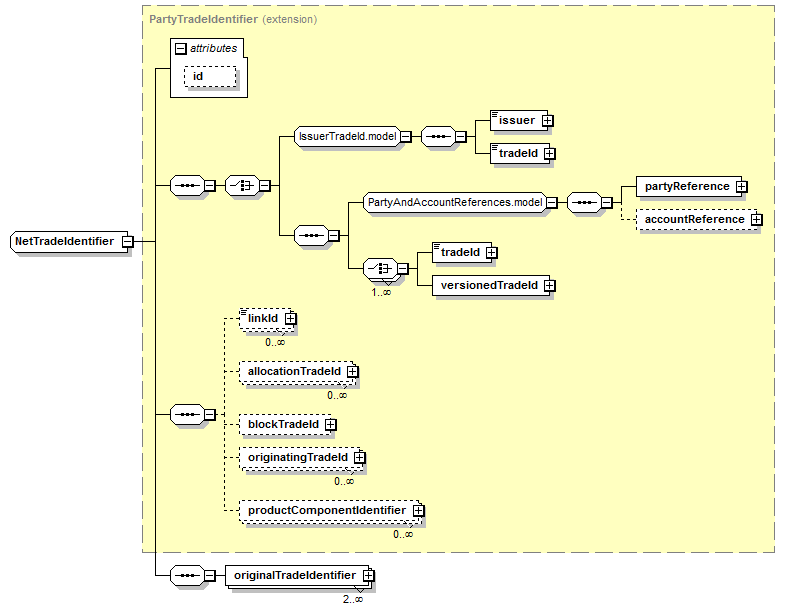

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (12):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId,
originalTradeIdentifier,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
All Direct / Indirect Based Elements (1):
netTradeIdentifier
Known Usage Locations
Annotation
Identification of a net trade and original trades.
Type Definition Detail
Type Derivation Tree
TradeIdentifier (extension)
  PartyTradeIdentifier (extension)
      NetTradeIdentifier
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="NetTradeIdentifier">
<xsd:complexContent>
<xsd:extension base="PartyTradeIdentifier">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="2" name="originalTradeIdentifier" type="TradeIdentifierList"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/12)
originalTradeIdentifier
Type:
TradeIdentifierList, complex content
Identification of original trades.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="2" name="originalTradeIdentifier" type="TradeIdentifierList"/>
