complexType "VarianceLeg"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 15 elements
Defined:
globally in fpml-variance-swaps-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

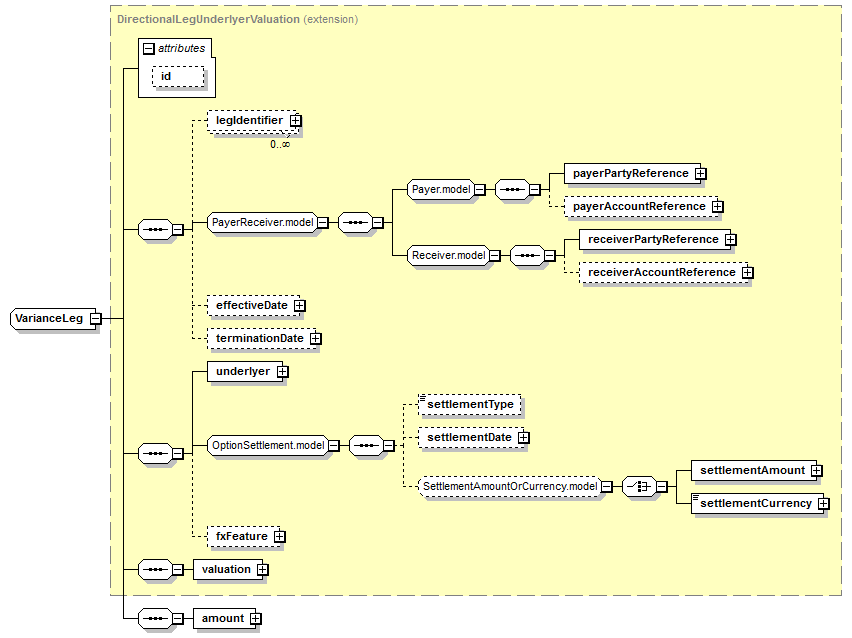

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (15):
amount (defined in VarianceLeg complexType),
effectiveDate (defined in DirectionalLeg complexType),
fxFeature (defined in DirectionalLegUnderlyer complexType),
legIdentifier,
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
terminationDate (defined in DirectionalLeg complexType),
underlyer (defined in DirectionalLegUnderlyer complexType),
valuation
All Direct / Indirect Based Elements (2):
varianceLeg (defined in VarianceSwapTransactionSupplement complexType),
varianceLeg (in varianceSwap)
Known Usage Locations
Annotation
A type describing return which is driven by a Variance Calculation.
Type Definition Detail
Type Derivation Tree
Leg (extension)
  DirectionalLeg (extension)
      DirectionalLegUnderlyer (extension)
          DirectionalLegUnderlyerValuation (extension)
              VarianceLeg
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="VarianceLeg">
<xsd:complexContent>
<xsd:extension base="DirectionalLegUnderlyerValuation">
<xsd:sequence>
<xsd:element name="amount" type="VarianceAmount"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/15)
amount
Type:
VarianceAmount, complex content
Specifies, in relation to each Equity Payment Date, the amount to which the Equity Payment Date relates. Unless otherwise specified, this term has the meaning defined in the ISDA 2002 Equity Derivatives Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="amount" type="VarianceAmount"/>
