complexType "VarianceSwapTransactionSupplement"
Namespace:
Content:
complex, 1 attribute, 10 elements
Defined:
Includes:
definition of 1 element
Used:

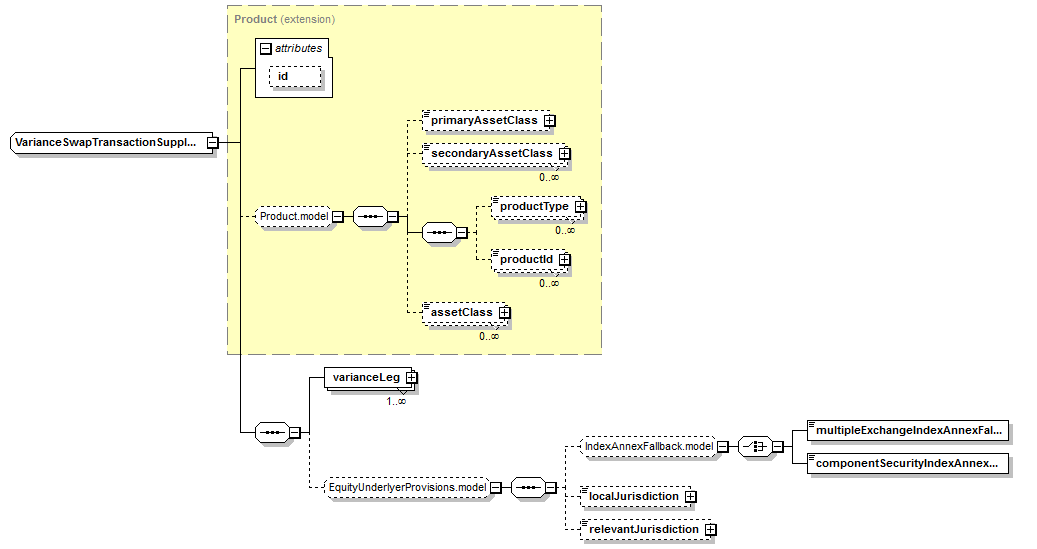

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (10):
assetClass,
componentSecurityIndexAnnexFallback,
localJurisdiction (defined in EquityUnderlyerProvisions.model group),
multipleExchangeIndexAnnexFallback,
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
relevantJurisdiction,
secondaryAssetClass,
varianceLeg (defined in VarianceSwapTransactionSupplement complexType)
All Direct / Indirect Based Elements (2):
varianceSwapTransactionSupplement,
varianceSwapTransactionSupplement (in varianceOptionTransactionSupplement)
Known Usage Locations
Annotation
A Variance Swap Transaction Supplement.
Type Definition Detail
Type Derivation Tree
Product (extension)
  VarianceSwapTransactionSupplement
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="VarianceSwapTransactionSupplement">
<xsd:complexContent>
<xsd:extension base="Product">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="varianceLeg" type="VarianceLeg"/>
<xsd:group minOccurs="0" ref="EquityUnderlyerProvisions.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/10)
varianceLeg
Type:
VarianceLeg, complex content
Variance Leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="varianceLeg" type="VarianceLeg"/>
