element <bondOption> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
BondOption
Content:
complex, 1 attribute, 26 elements
Subst.Gr:
substitutes for product
Defined:
globally in fpml-bond-option-5-13.xsd; see XML source
Used:
never

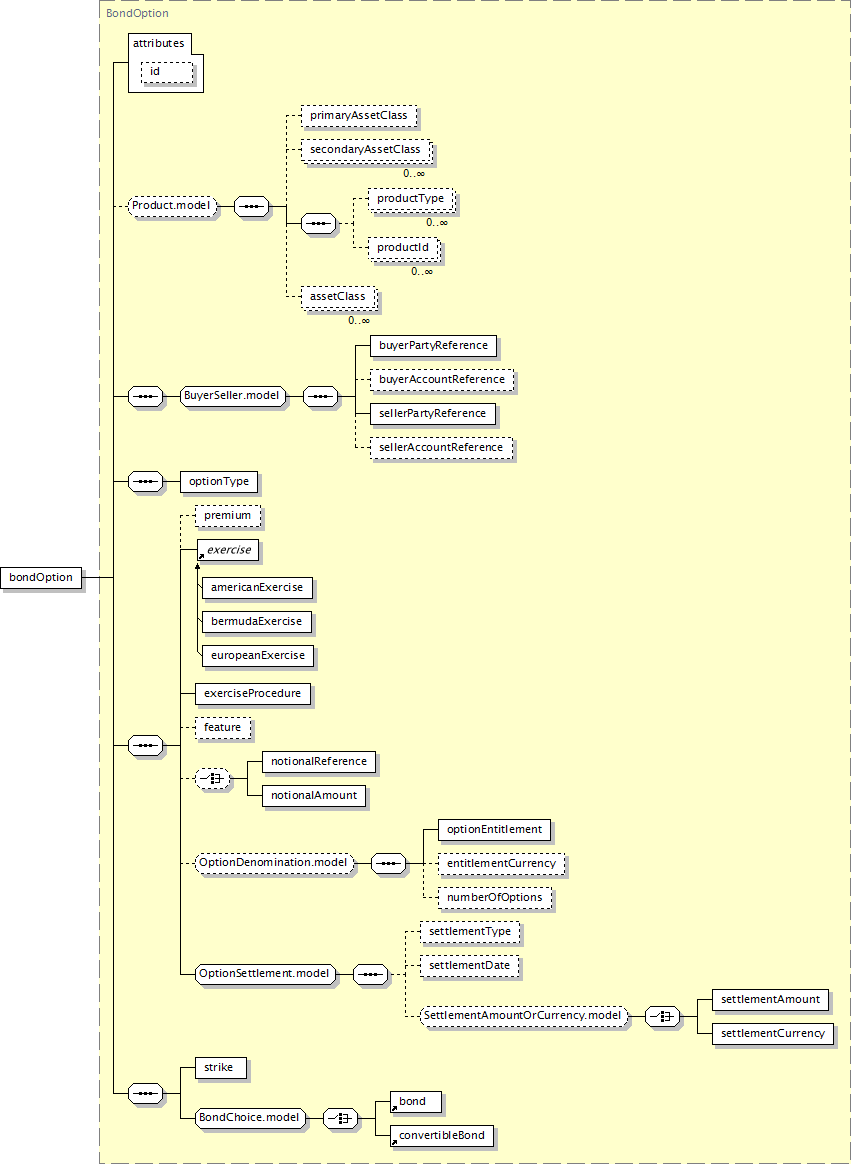

Component Diagram
XML Representation Summary
<bondOption

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, optionType, premium?, exercise, exerciseProcedure, feature?, (notionalReference | notionalAmount)?, (optionEntitlement, entitlementCurrency?, numberOfOptions?)?, settlementType?, settlementDate?, (settlementAmount | settlementCurrency)?, strike, (bond | convertibleBond)
</bondOption>
Content model elements (26):
assetClass,
bond,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
convertibleBond,
entitlementCurrency,
exercise,
exerciseProcedure (defined in OptionBaseExtended complexType),
feature (defined in OptionBaseExtended complexType),
notionalAmount (defined in OptionBaseExtended complexType),
notionalReference (defined in OptionBaseExtended complexType),
numberOfOptions (defined in OptionDenomination.model group),
optionEntitlement (defined in OptionDenomination.model group),
optionType (defined in OptionBase complexType),
premium (defined in OptionBaseExtended complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
strike (in bondOption)
May contain elements by substitutions (3):
americanExercise, bermudaExercise, europeanExercise
May be included in elements by substitutions (24):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionEvent),
originalTrade (in optionExpiry defined in OptionsEventsBase.model group),
physicalSettlement (defined in OptionExercise complexType),
physicalSettlement (in noTouch),
physicalSettlement (in touch in optionEvent),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
strategy,
trade (defined in DataDocument complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in approvalStatusNotification),
trade (in clearingStatusItem),
trade (in withdrawal)
Annotation
A component describing a Bond Option product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="bondOption" substitutionGroup="product" type="BondOption"/>
